Condition Desc. Used

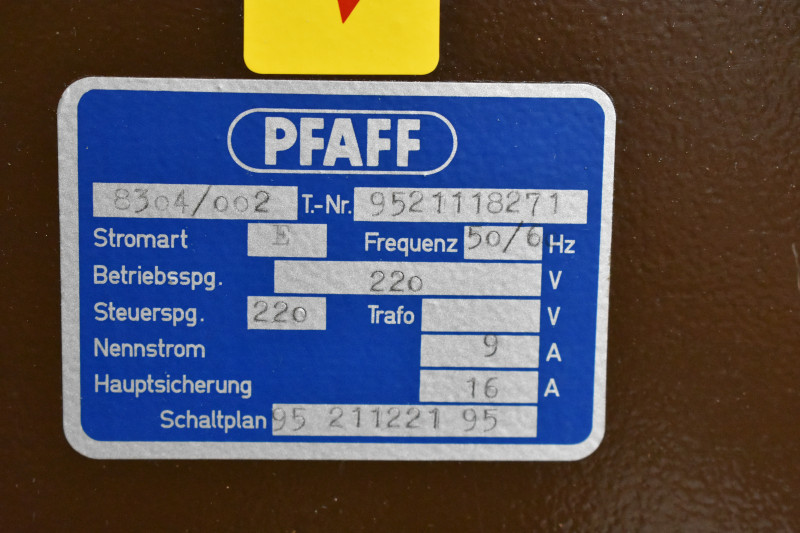

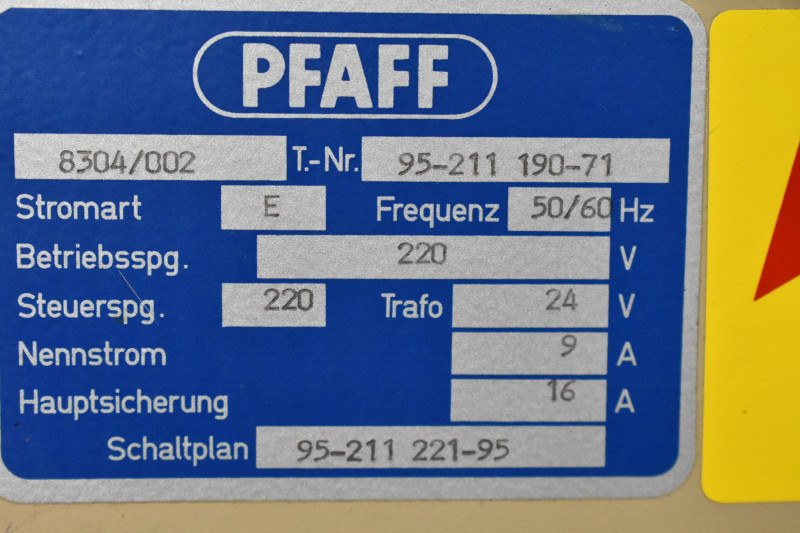

Manufacturer PFAFF
Volts 220
Model 8304/002
Amperes 16
Length 63
Width 24
Height 53
Weight 260

This is a truck freight item which will require us to get a shipping quote. You can complete the checkout and provide payment information but you will not be charged until you agree to the freight charges. We will contact you with the freight quote. If you are providing your own shipping contact us.

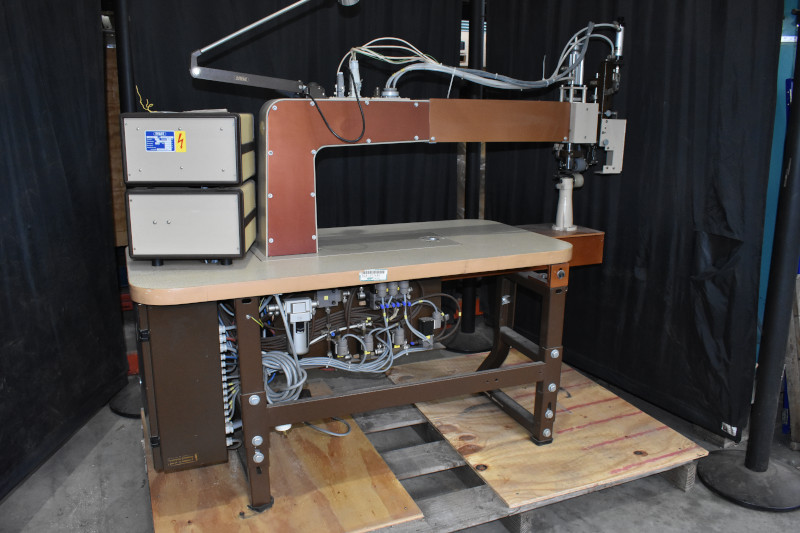

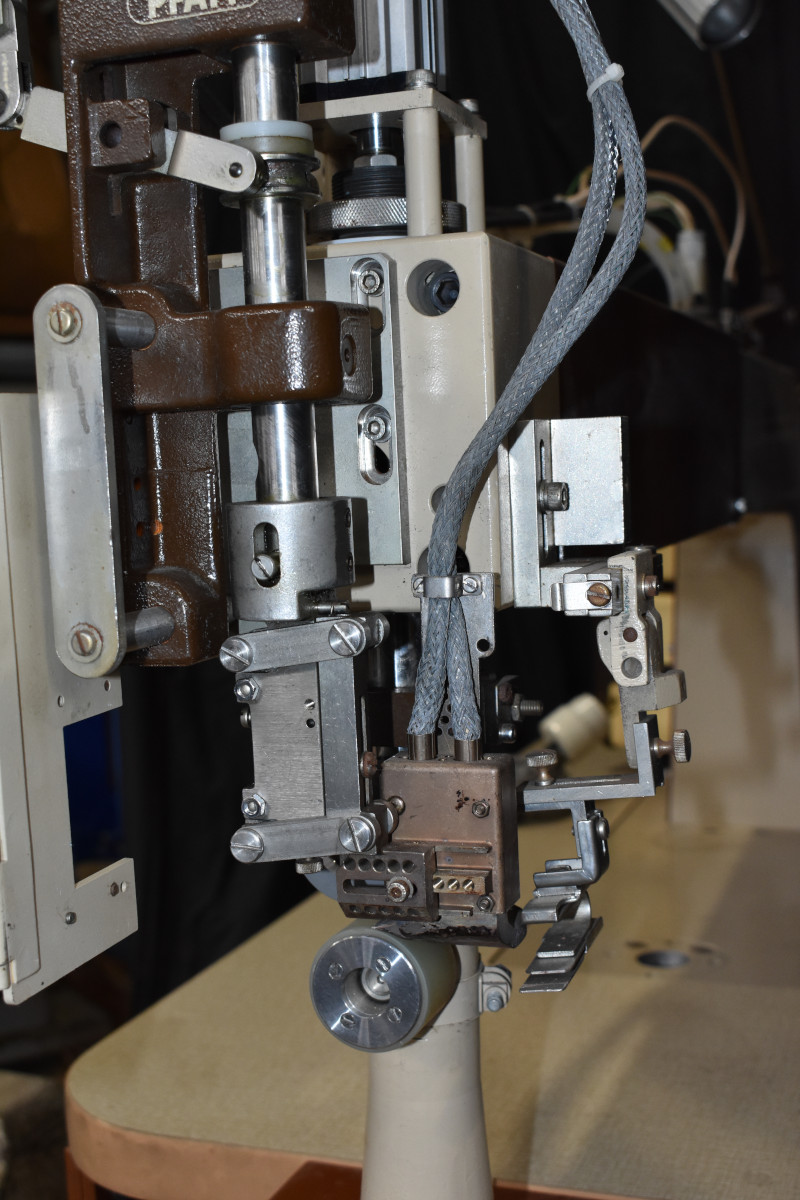

PFAFF 8304/002 Hot Wedge, Heat Sealing Machine fabric welder

Mfg: PFAFF

Mdl: 8304/002

$8,500.00

Quantity: 1

Inventory #: 8919

Call 610-286-1655 with questions or shipping quotes.
REQUEST MORE INFO

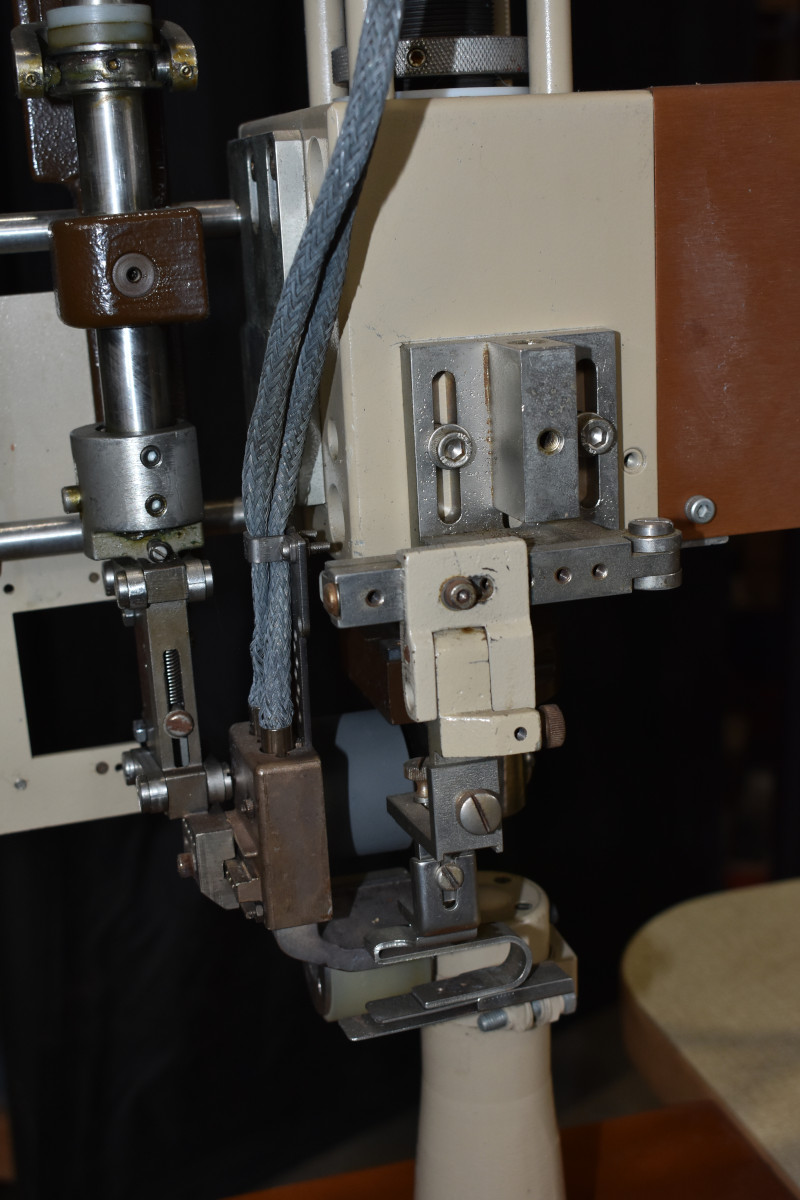

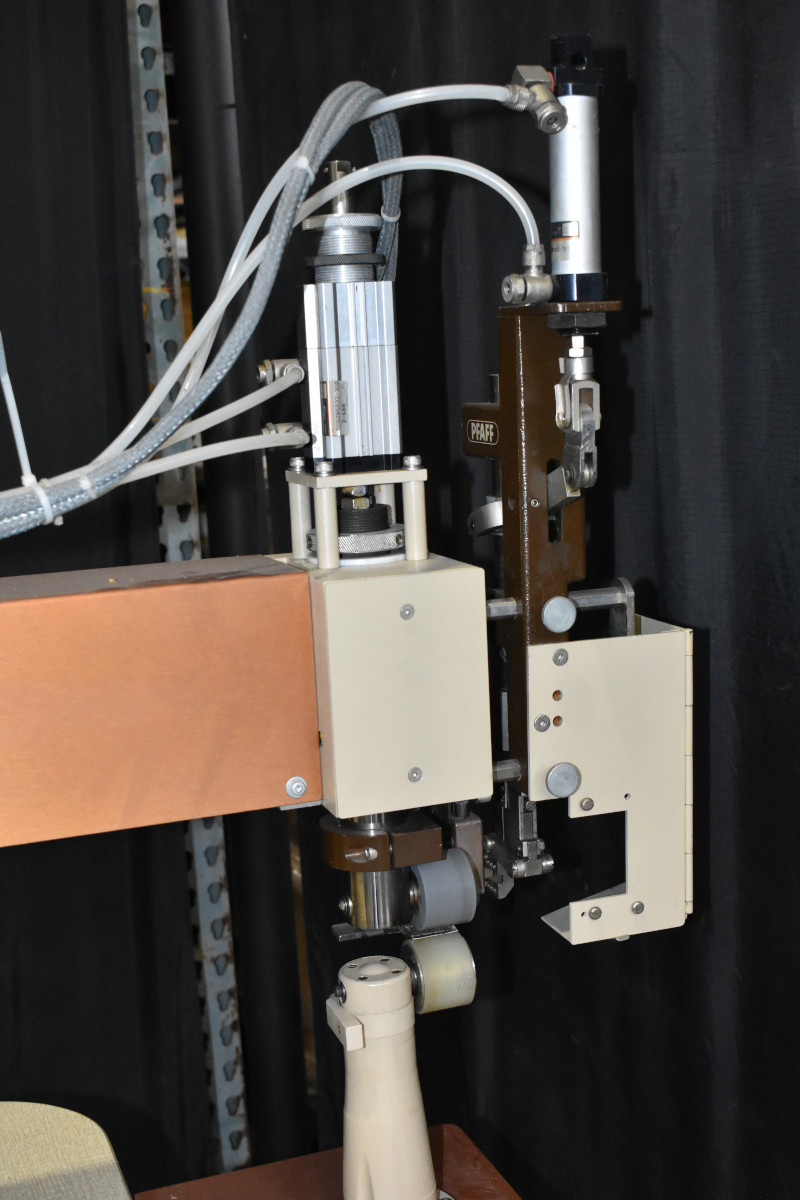

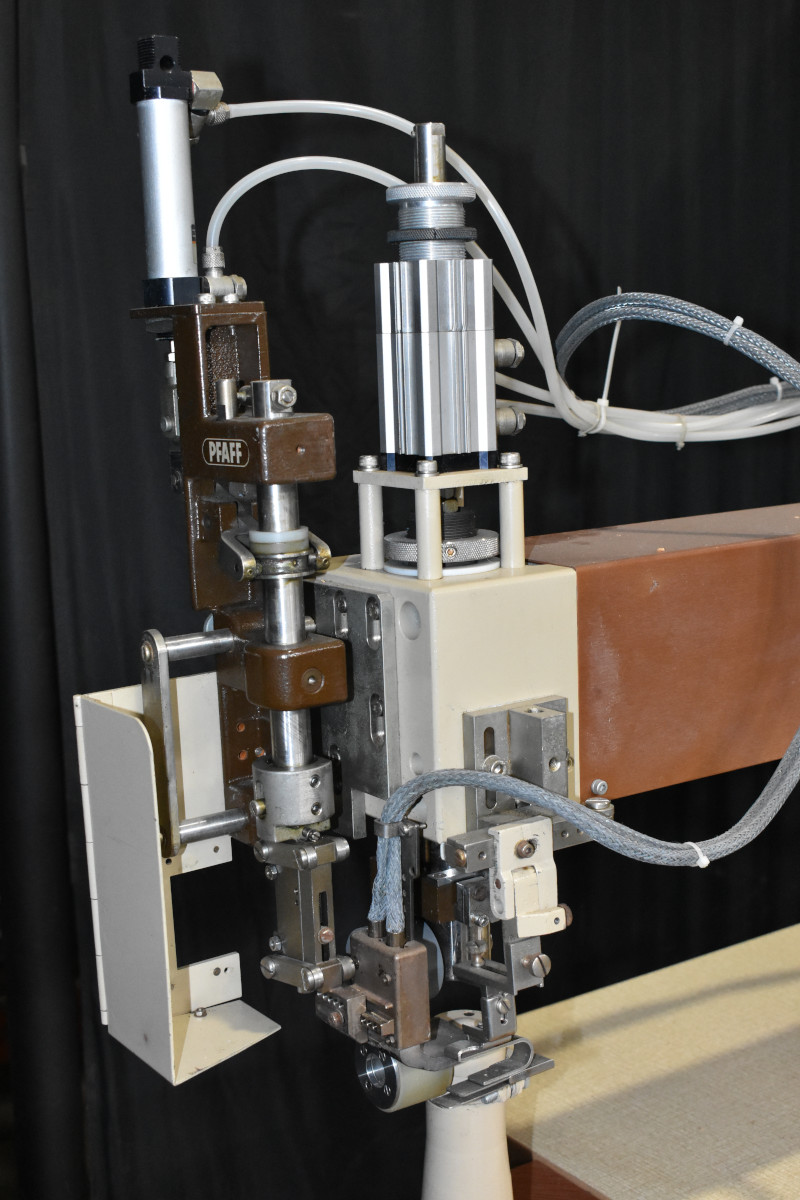

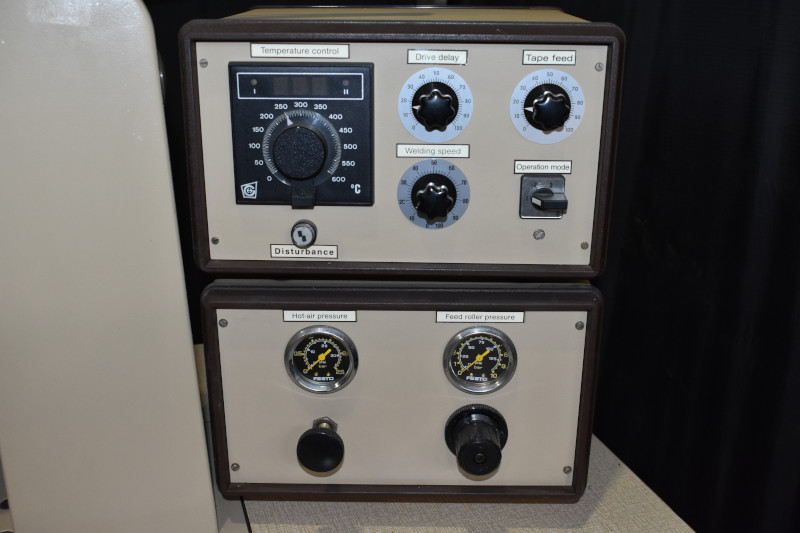

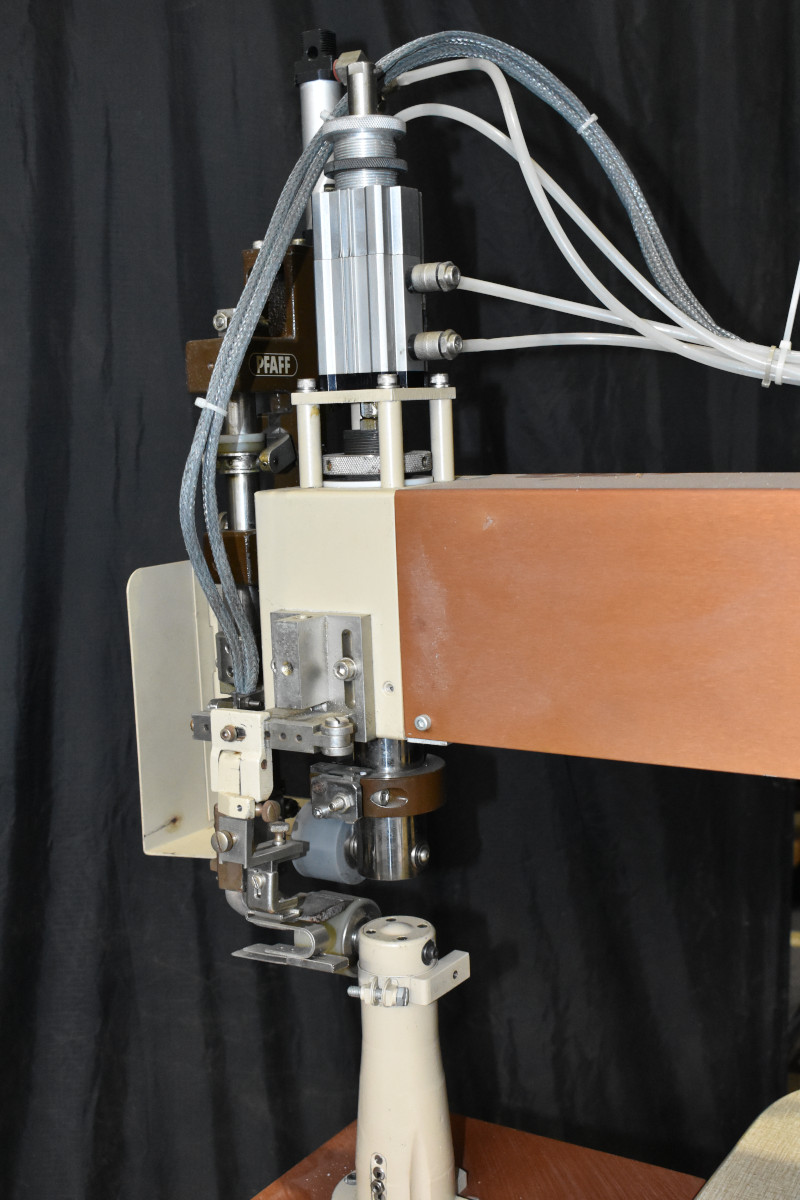

 This is a used fabric heat sealing machine ( hot-wedge version) for direct welding of heavy, large flexible thermoplastic material.  These machines are commonly used for tanks, pipeline production, tarpaulins, swimming pools, PVC, banners, foils, promotional posters, inflatable figures and tents. All of the functions have been tested and the machine makes a nice seal.  The machine shows very little signs of use and is in very good clean condition.  The only thing that does not work on the machine is the current temperature display does not light up but it is not needed since the temperature adjustment knob has a temperature scale.

This machine differs from a standard PFAFF 8304 because the throat has been lengthened allowing large items to be sealed.  The distance from the sealing area to the frame is 36" on this machine vs 15" on a standard unit.   This machine is in very good condition with very low hours of use.

  • PFAFF 8304 heat sealing machine with hot wedge
  • 36" throat (opposed to 15" on a standard machine)
  • hot wedge temp up to 600°C
  • Heat-sealing speed: 0 - 10 m/min (infinitely variable)
  • Material thickness: from .0078" minimum
  • Seam width: 1 1/16"
  • The heat-sealing parameters (temperature, speed, pressure) can be set separately.
  • The special silver alloy of the hot wedge guarantees low-noise, clean work without smoke development during the heat-sealing operation.
