Meters/Flowmeters

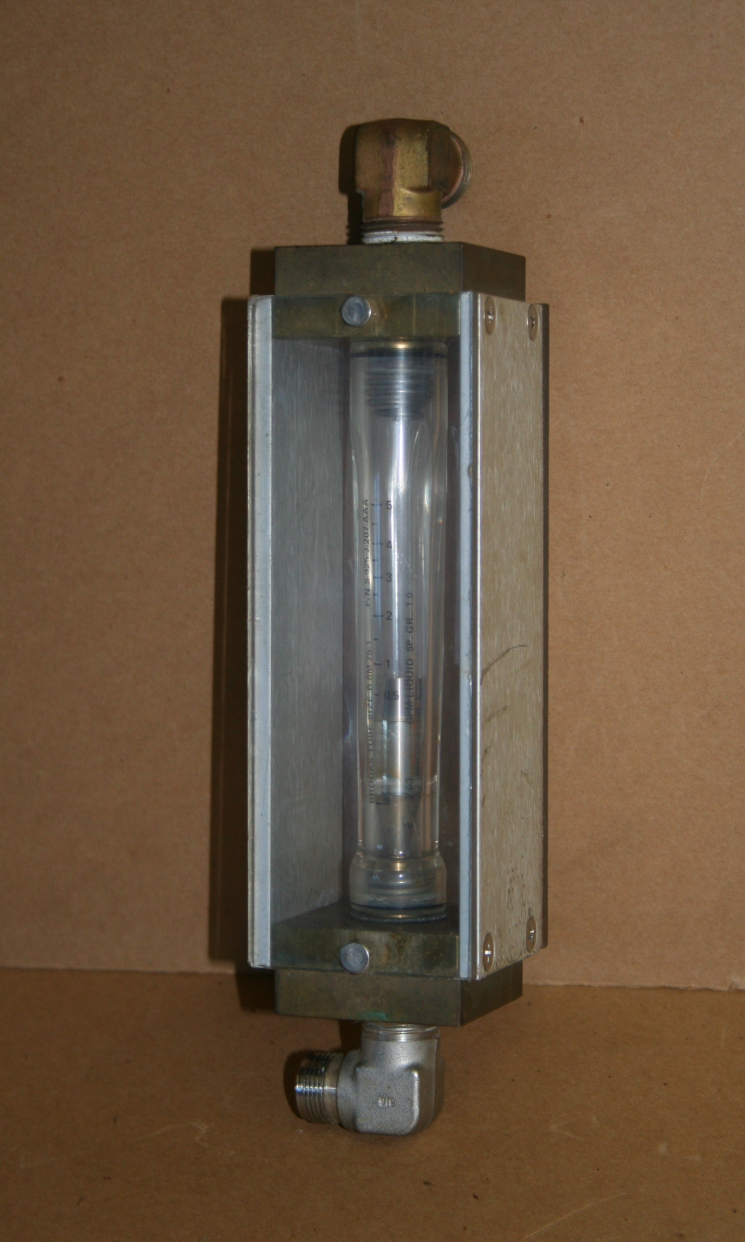

This is an unused flowmeter and ball valve assembly, the flowmeter is made by Brooks Instrument Division model 1305D. The flowmeter is an unused take-out meaning it was installed in a system that was never put into into production and it has a few scratches.

• This was part of a larger spare parts assembly, some minor cosmetic shelf wear
• Includes one brass and one stainless steel 90 degree fitting
• Full model number marked: 1305D03A1A1A
• Tube size (part number): R-8M-75-1 (S-925-J-207-AAA)
• Borosilicate tube
• Scale: GPM liquid SP. GR. 1.0
• Range: 0.5 - 5
• Max PSI: 200 at 200 deg F
• Float:
• 8-RJ-39
• 5 GPM
• Pressure drop inches W.C.: 34
• Aluminum side plates
• Brass fittings
• Stainless steel float and float stops
