Specs Shipping Info
Condition Desc. Unused
Manufacturer Duff Norton
Model M10005-338
Weight 41

Flat Shipping Rate: $40


This item will to ship anywhere in the contiguous US for the above rate. Call for international or combined rates.

Screw jack actuator M10005-338 5 ton Stainless steel Duff Norton Unused 13" stroke

Mfg: Duff Norton

Mdl: M10005-338

$850.00

Quantity: 1

Inventory #: 5085

Call 610-286-1655 with questions or shipping quotes.
REQUEST MORE INFO

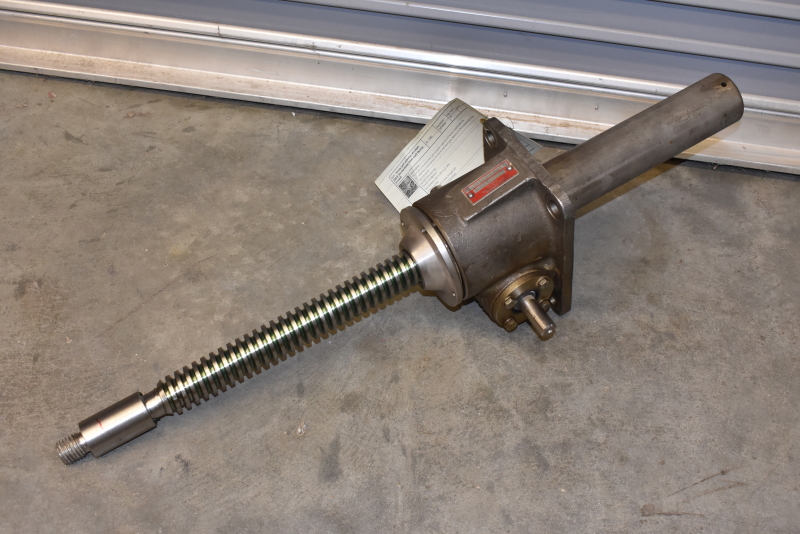

This is a stainless steel 10000 series Duff norton screw actuator.  This is a metric designation so the travel is rated at 338 mm which is about 13.3".  Unit operates by turning the input shaft and there is a slight increase in resistance a one spot in the rotation but this does not affect operation.

  • This is an unused screw jack actuator made by Duff Norton, model M10005-338.
  • 316 stainless steel except for worm and worm gear.
  • Worm is 17-4 PH SS and worm bear is bronze.
  • 5 ton capacity
  • Upright translating
  • Travel: 13.3"
  • We believe this is the 12:1 ratio
  • Lifting screw:
    • Threaded end: 1 inch thread OD

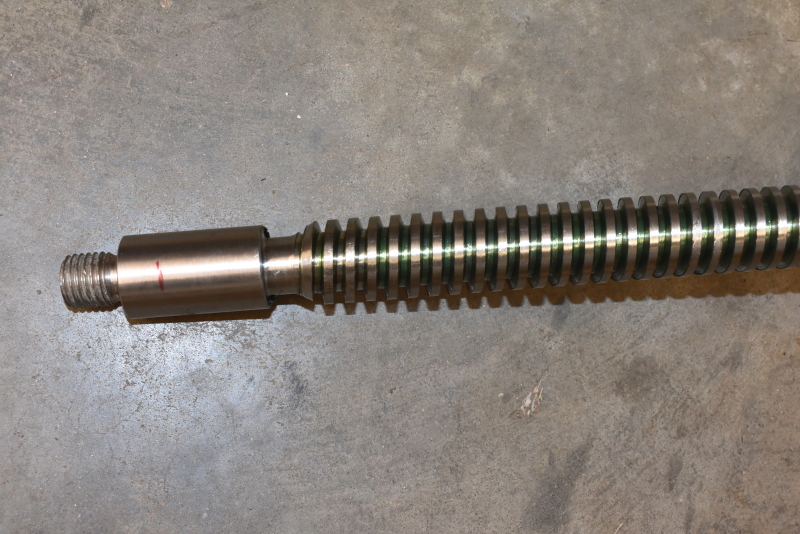

    • Screw diameter: 1 1/2 inches
  • Shaft (worm): 17-4 PH stainless steel
    • Diameter: 3/4 inch
    • Length: approx 1 3/4 inches, shaft end to seal
