Condition Desc. used
Manufacturer Deltech
Model DM305
Serial # 1000002848427
Length 55
Width 50
Height 62
Weight 1450

This is a truck freight item which will require us to get a shipping quote. You can complete the checkout and provide payment information but you will not be charged until you agree to the freight charges. We will contact you with the freight quote. If you are providing your own shipping contact us.

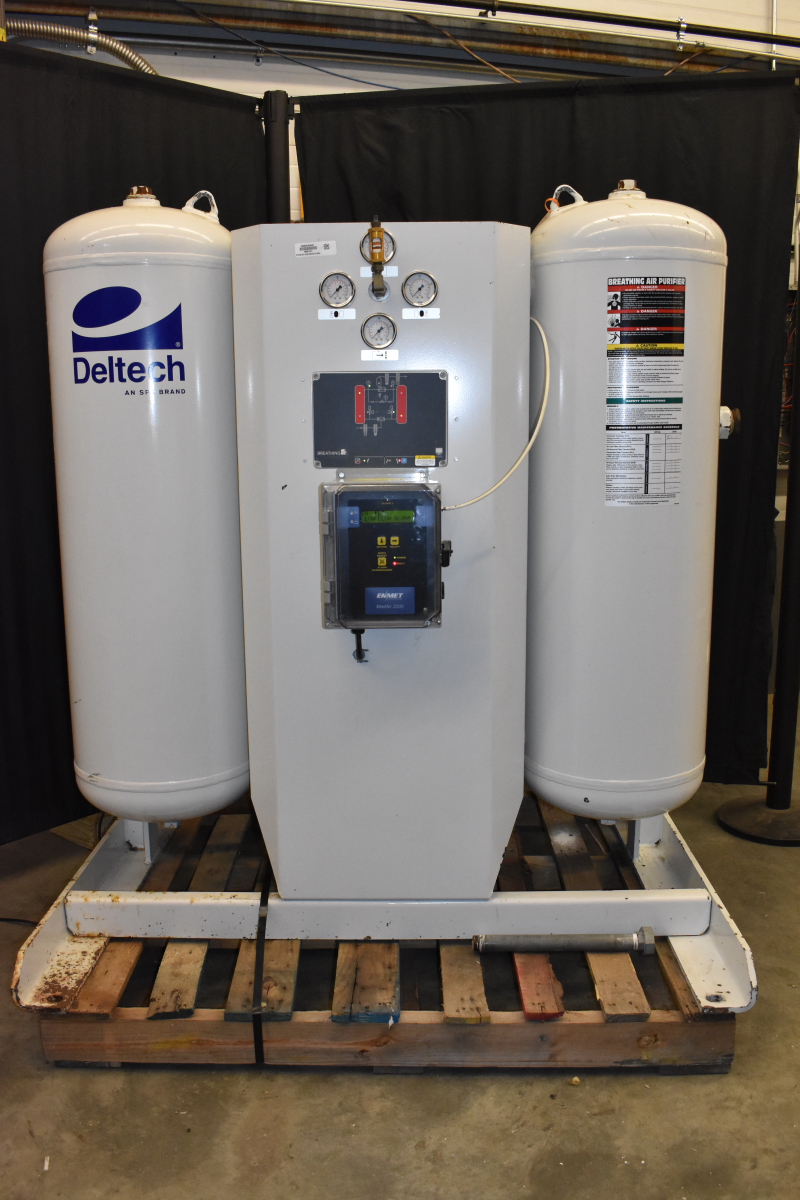

Deltech Breathing air purifier DM305 305 SCFM

Mfg: Deltech

Mdl: DM305

$12,000.00

Quantity: 1

Inventory #: 9449

Call 610-286-1655 with questions or shipping quotes.
REQUEST MORE INFO

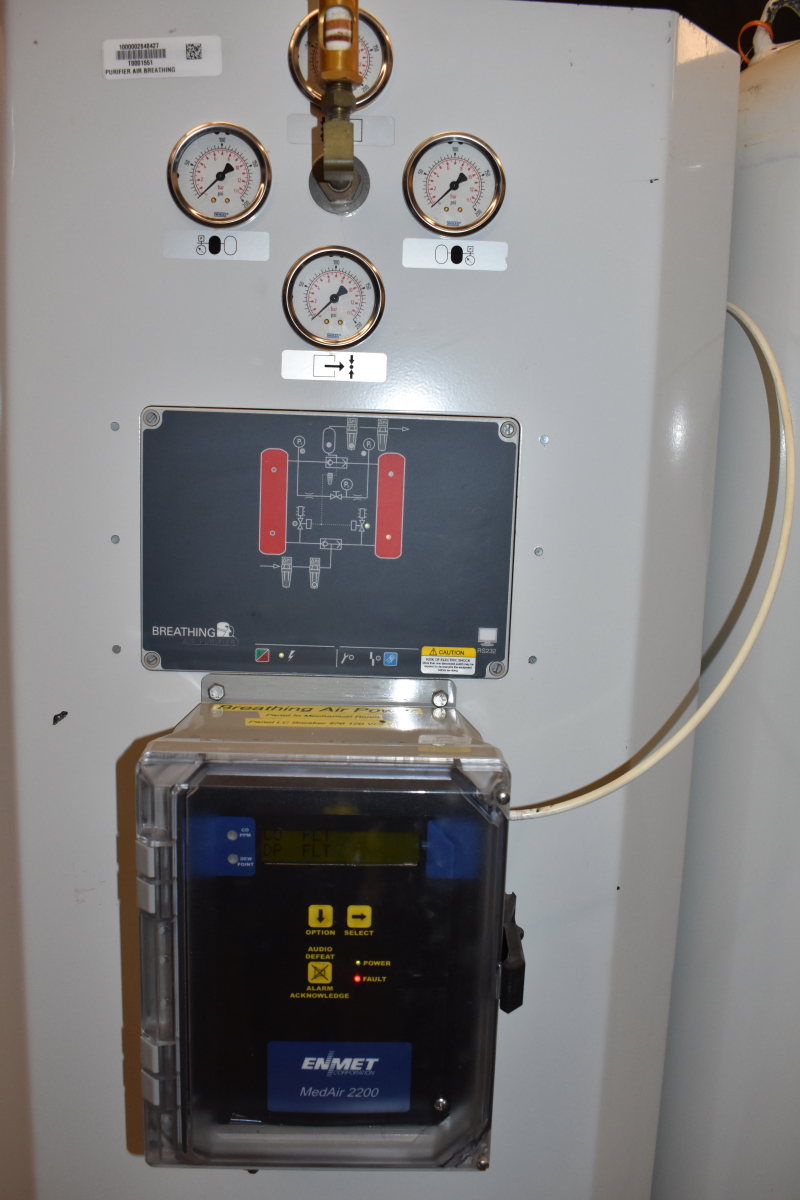

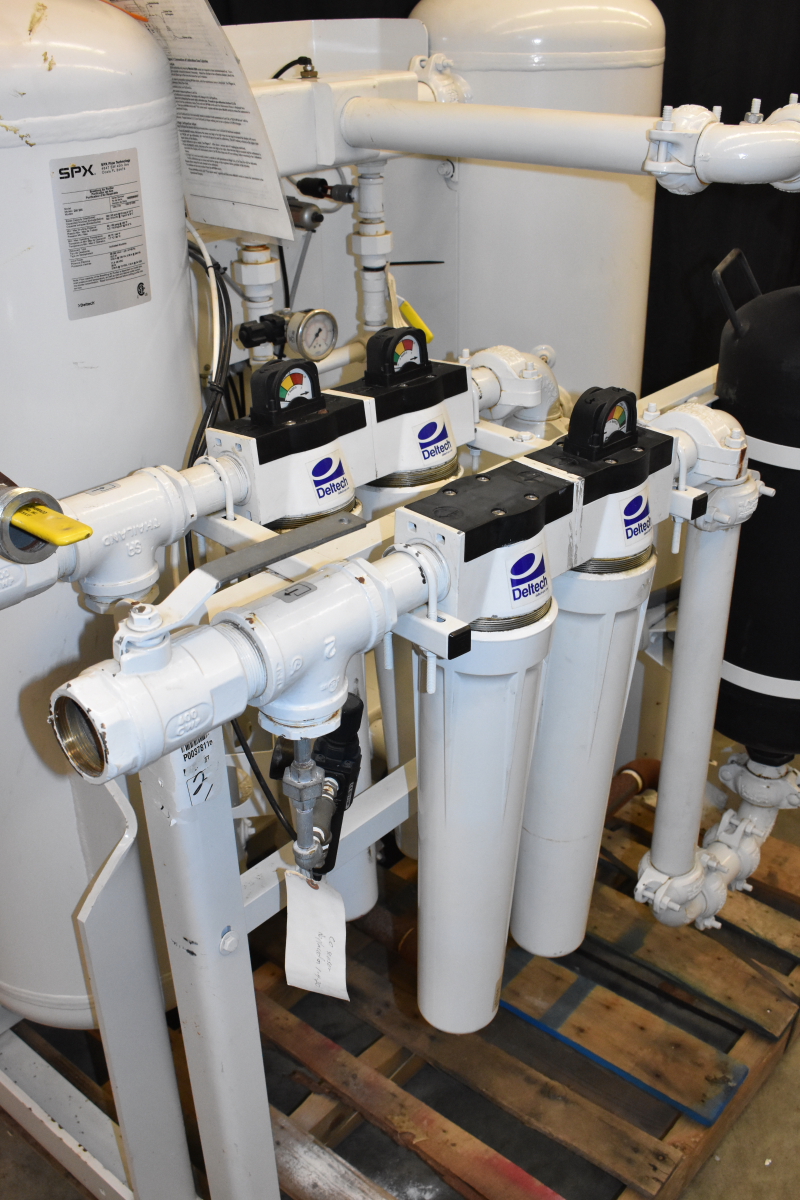

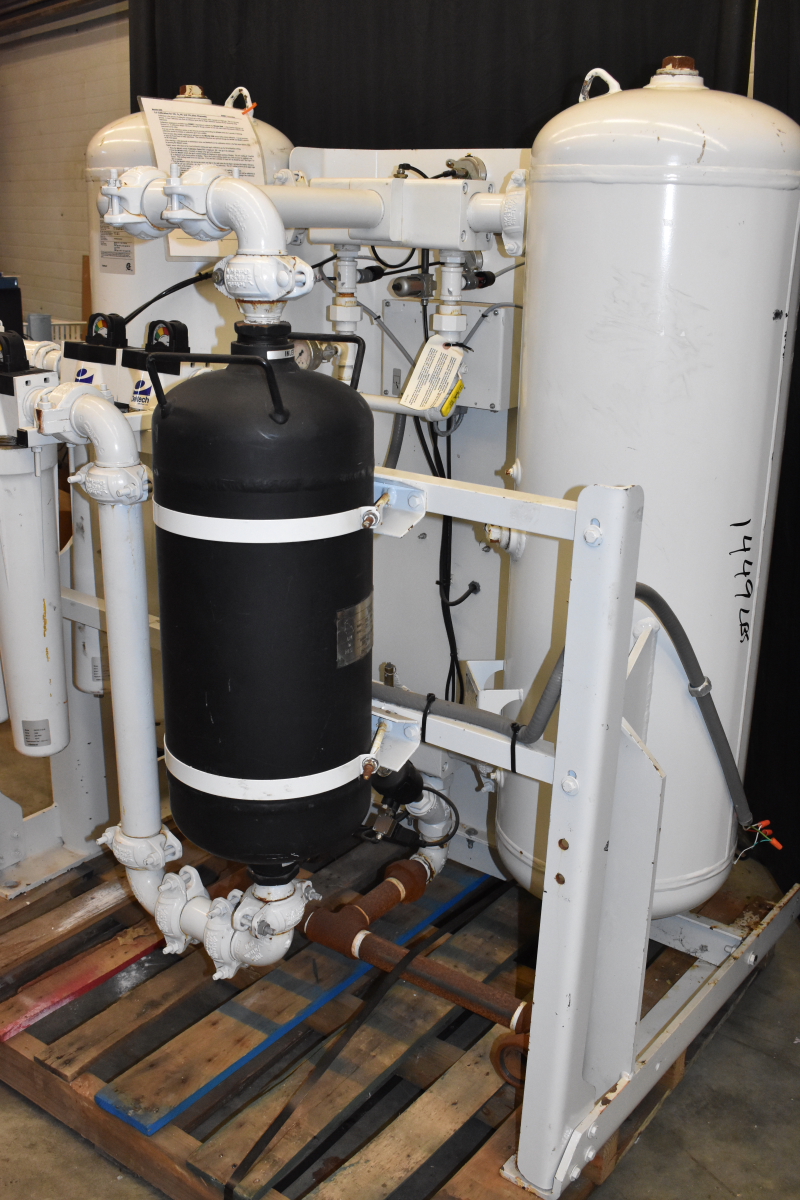

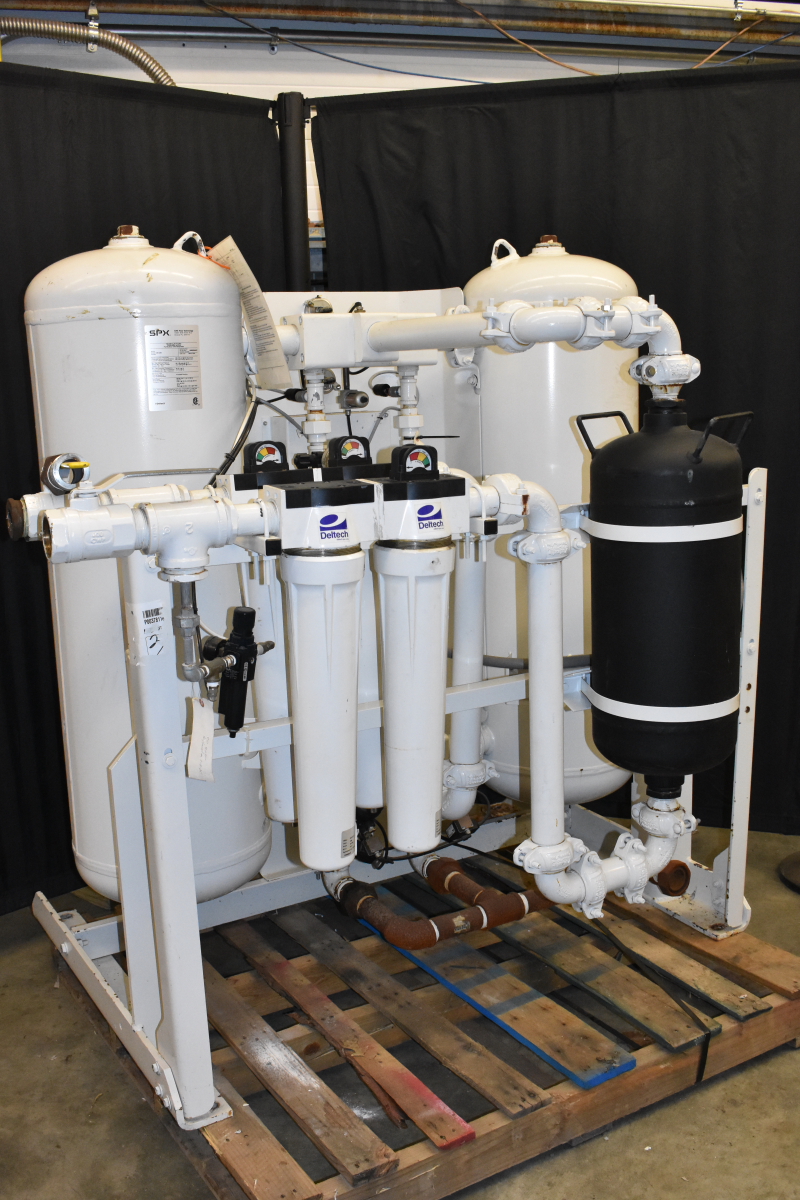

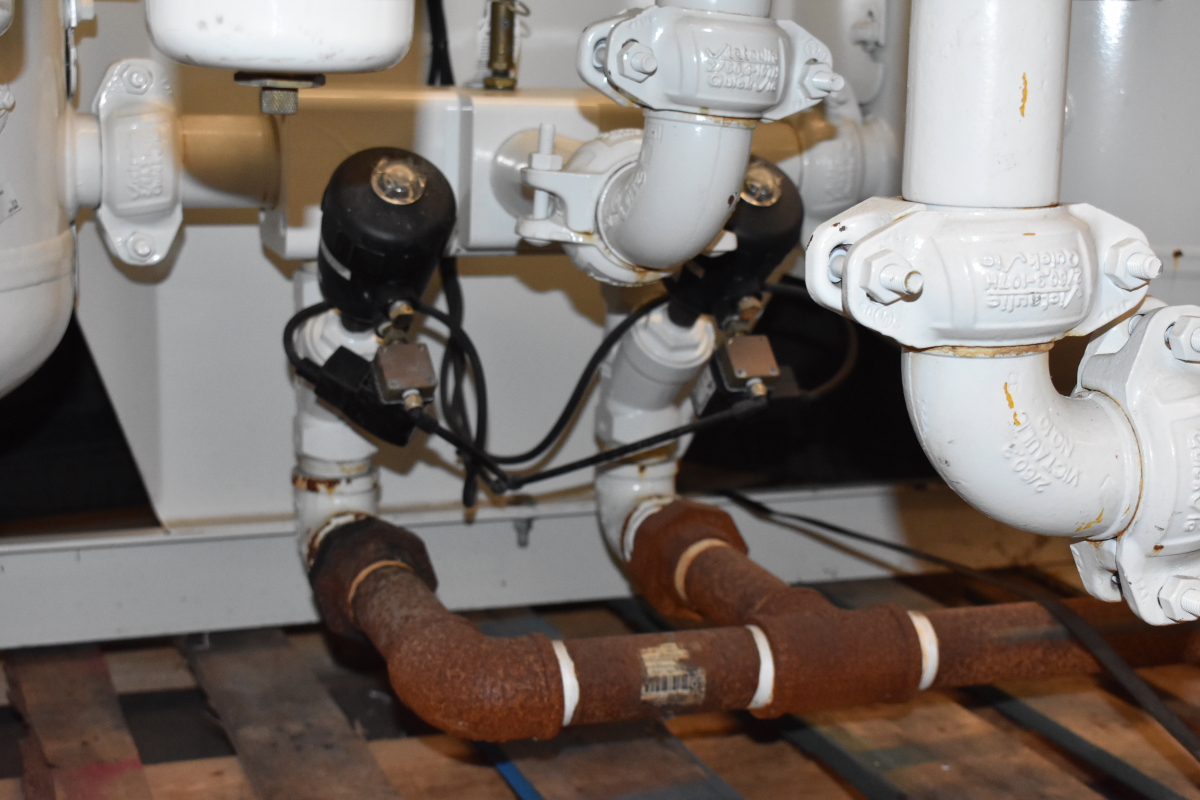

This is a Deltech DM305 breathing air purifier for delivering breathing air in accordance to international standards.  This breathing air system takes compressed air and filters it with a prefilter and oil removal filter and then the air goes through a desiccant filter to remove the rest of the moisture.  After it exits the desiccant filter bed it goes through two more after-filters before exiting the machine.  There are two desiccant beds on this machine so one is in regeneration mode while the other one is drying the process air.  The operation of the valves and machine is controlled with a digital control board.  There is a dewpoint and carbon monoxide alarm also added as an option.

Unit is in good condition and the controller turned on and was responsive.  There are no filter elements installed in the filter housings.  We also have a DM 25 and a DM 205 available as well.

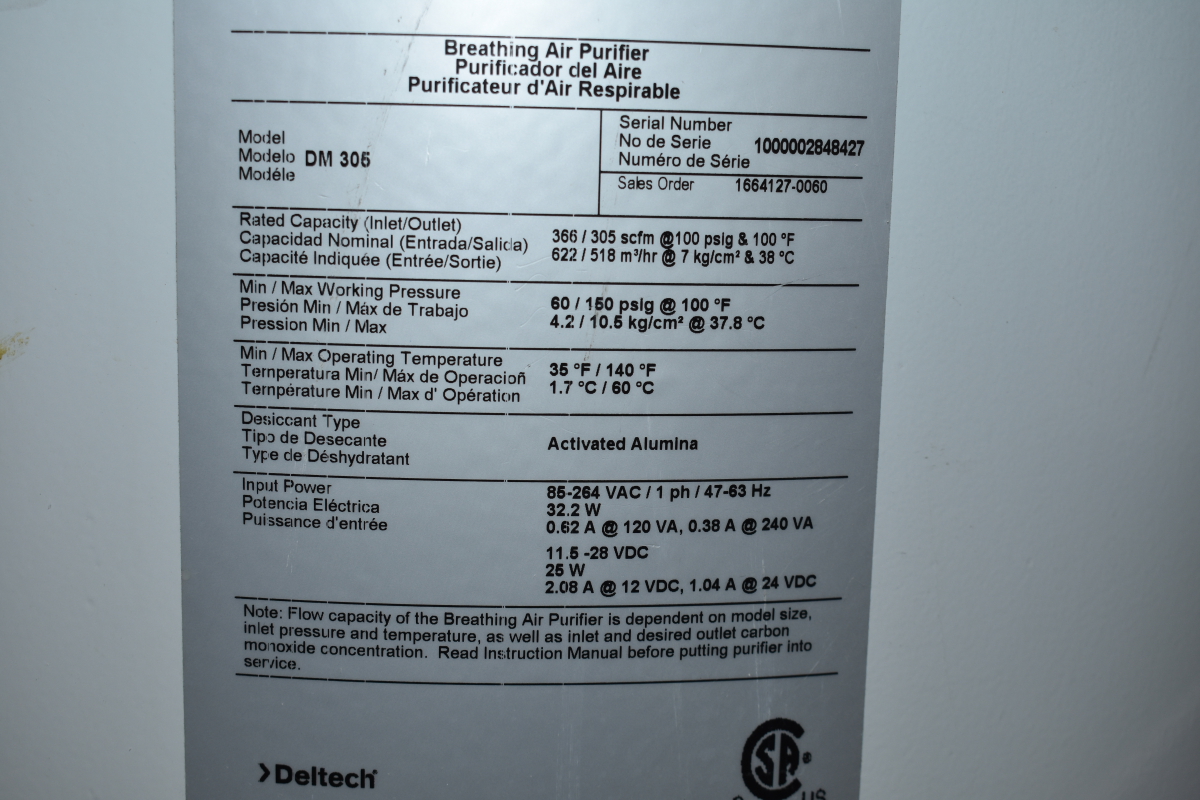

  • Rated capacity - (inlet, outlet) 366/305 SCFM @100 PSIG and 100 F
  • Desiccant type / activated alumina
  • Input power / 85 -264 VAC/single phase/47-63 HZ.
  • Min/Max working pressure 50/150 @ 100°
  • Inlet/outlet size-2"
  • Enmet 2200 controller
  • OPTIONAL Enmet 2200 carbon monoxide and dewpoint alarm
  • Meets OSHA, CS, CGA and ANSI breathing air requirements with 6 stage filtration
  • NEEDS FOUR FILTER CARTRIDGES
