Hydraulic demonstration channel A-8 wave water flume ELD NEEDS PARTS

Specs Shipping Info

Condition Desc.	used-NEEDS PARTS
Manufacturer	Engineering Laboratory Design Inc
Volts	115
Model	A-8
Amperes	20
Length	96
Width	31.5
Height	47
Weight	600
Phase	1

This is a truck freight item which will require us to get a shipping quote. You can complete the checkout and provide payment information but you will not be charged until you agree to the freight charges. We will contact you with the freight quote. If you are providing your own shipping contact us.

Hydraulic demonstration channel A-8 wave water flume ELD NEEDS PARTS

Mfg: Engineering Laboratory Design Inc

Mdl: A-8

$2,500.00

Quantity: 1

Inventory #: 9612

Call 610-286-1655 with questions or shipping quotes.

THIS UNIT IS NOT OPERATIONAL WITHOUT ITEMS SUCH AS THE MAIN PUMP, CONTROL BOX, ETC.

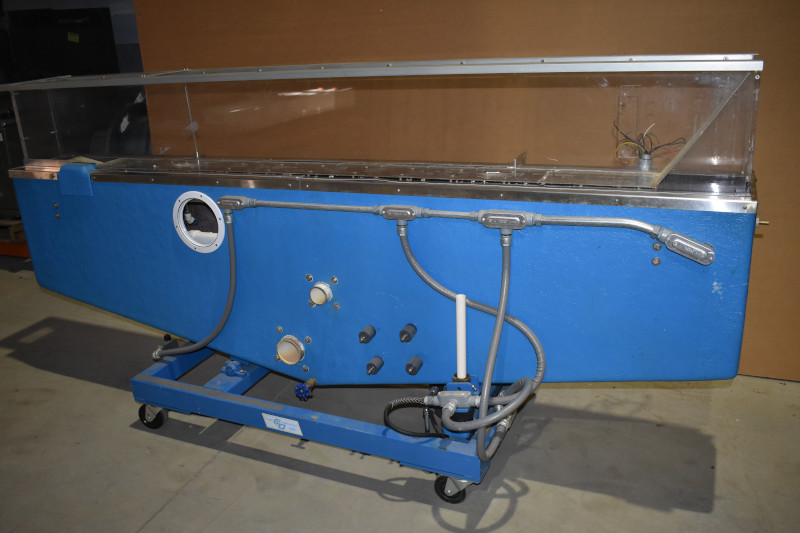

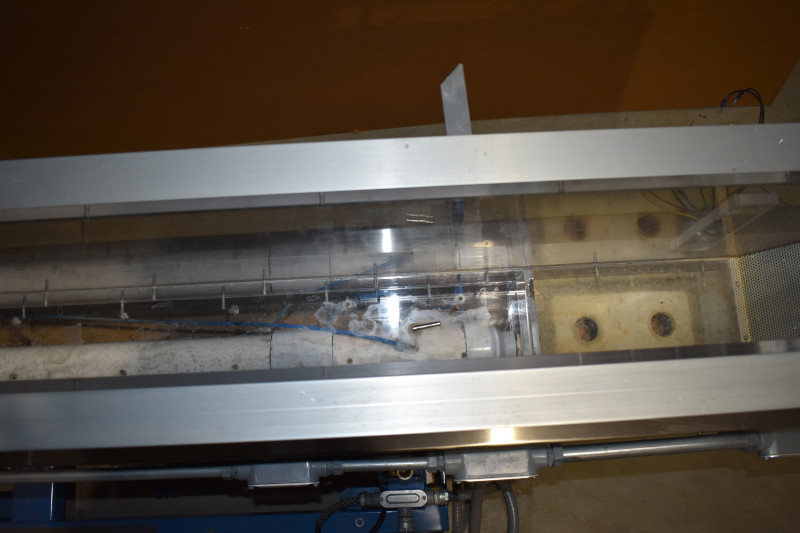

This is a 6" wide x 8 ' long hydraulic demonstration channel made by Engineering Laboratory Design Inc THAT IS BEING SOLD AT AT DISCOUNT BECAUSE IT IS MISSING PARTS. The purpose of this unit is to act as a teaching aid to demonstrate the characteristics of hydraulic dynamics of an open channel. A pump (MISSING) delivers water from one side of the channel to the other while many adjustments are made to the system with removable "models", (dams & weirs) flaps and flow valves. The unit is in very good condition BUT IT WILL NEED MULTIPLE PARTS TO BE OPERATIONAL. There is no headtank/adjustable undershot gate but that is not required for all experiments.

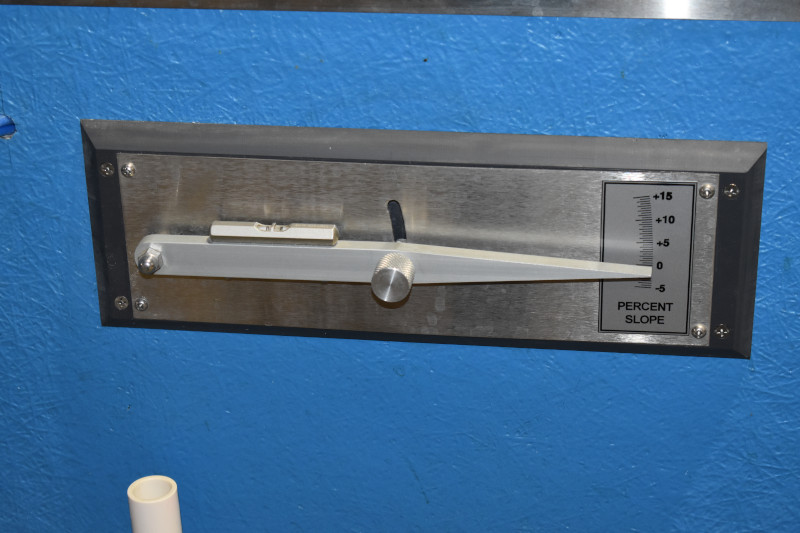

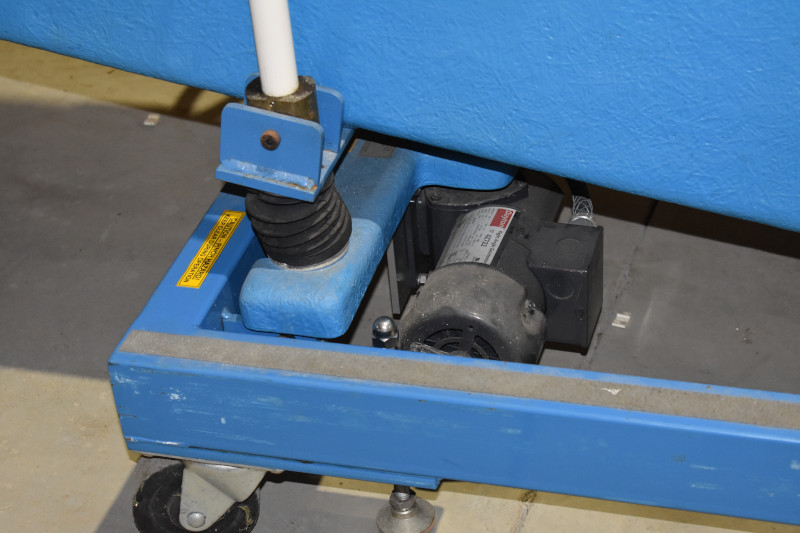

tank tilting feature

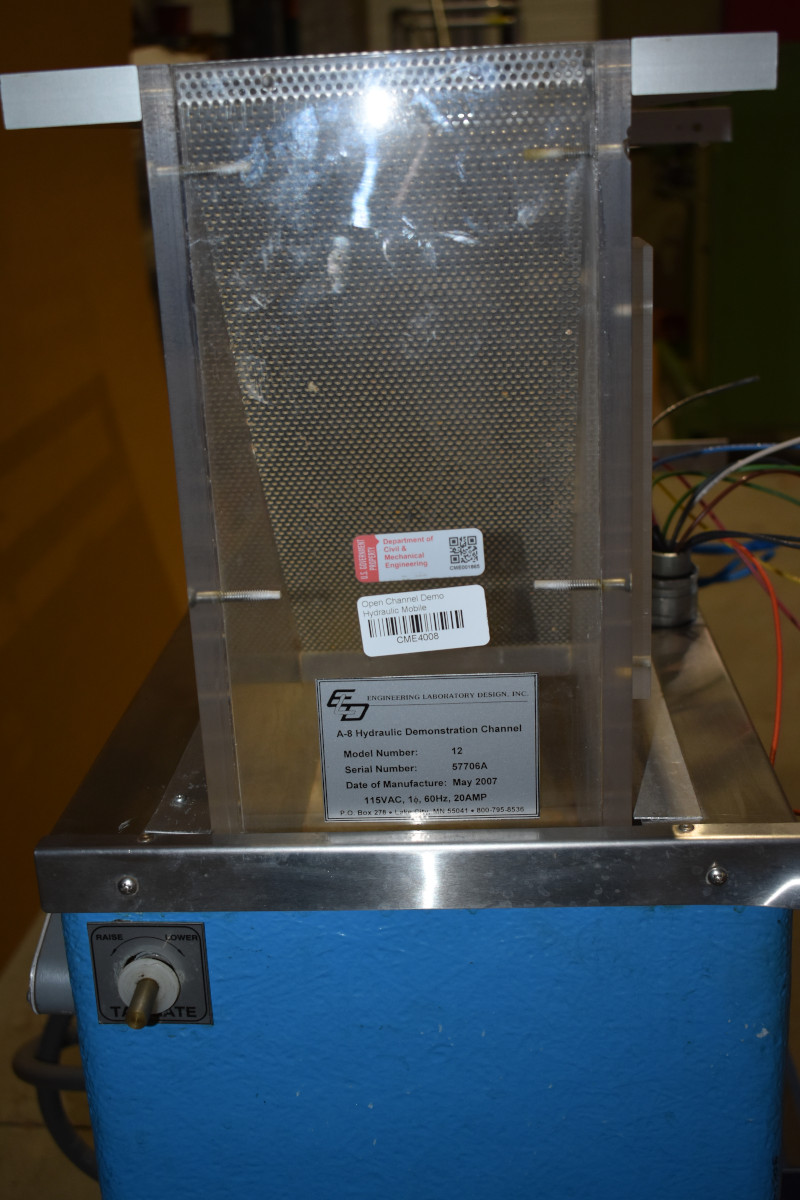

movable tailgate

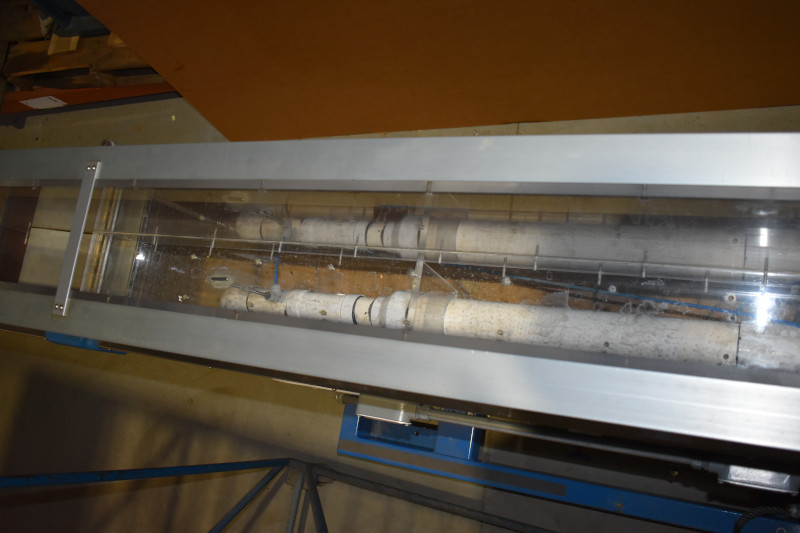

tank Inside dimensions

length - 96"
width - 6"
Height - 12"

NOT INCLUDED: We had another one of these units that was operational so below is what we know is missing.

manometers
headtank with adjustable undershot gate
wiers or models

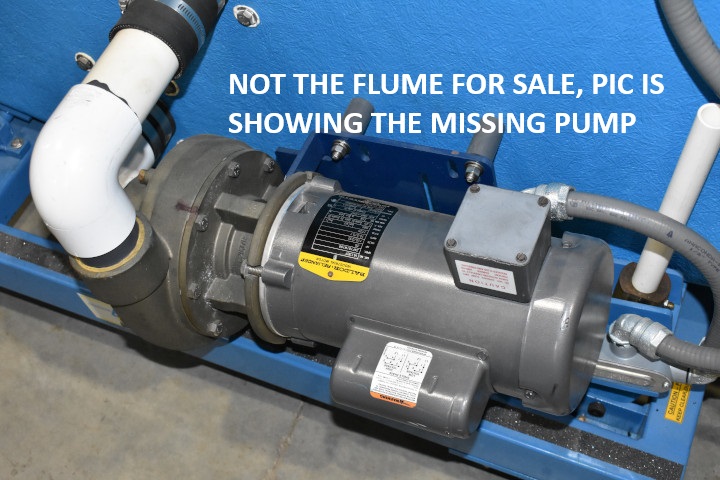

missing main pump - the original was a Prince 3/4 HP, 95 GPM, with 3" inlet and 2" outlet

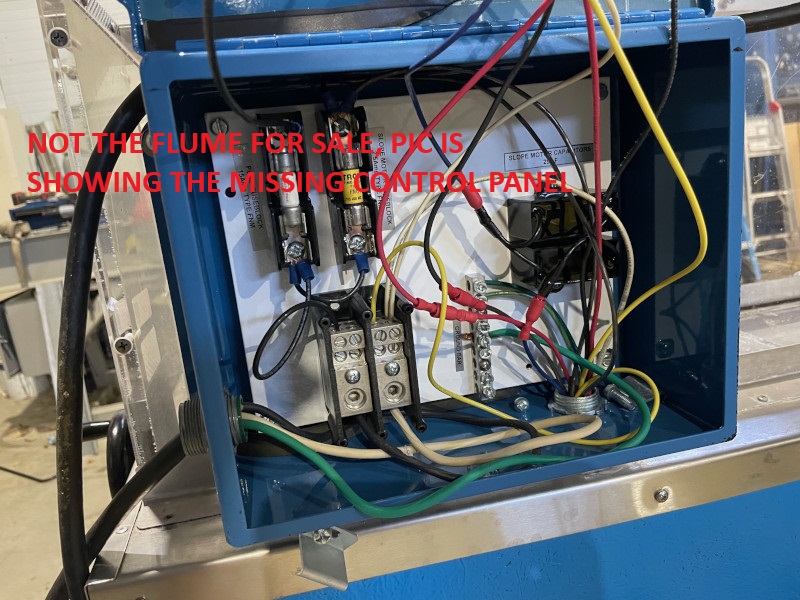

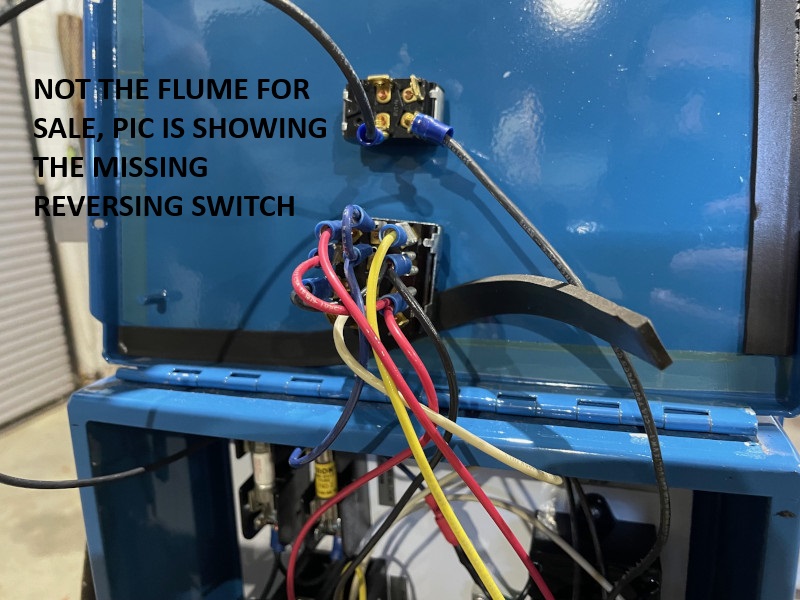

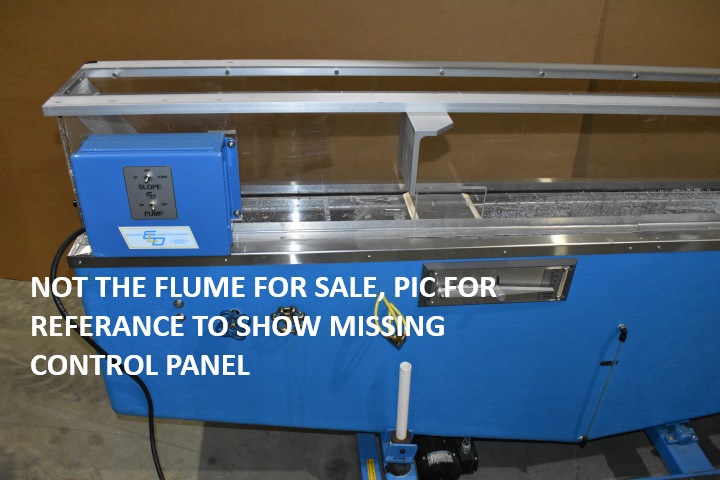

missing control box - Controls were simple, just a reversing switch for the tilt motor, capacitor, fuses
missing a few knob handles
