general purpose 27 ACF centrifugal 5 HP New York Blower ARR-10, AccoustaFoil

Specs Shipping Info

Condition Desc.	Unused
Manufacturer	New York Blower
Volts	230/460
Model	General Purpose ARR-10
Serial #	2020-0442201
Length	57
Width	54
Height	55
Weight	960 lbs

This is a truck freight item which will require us to get a shipping quote. You can complete the checkout and provide payment information but you will not be charged until you agree to the freight charges. We will contact you with the freight quote. If you are providing your own shipping contact us.

general purpose 27 ACF centrifugal 5 HP New York Blower ARR-10, AccoustaFoil

Mfg: New York Blower

Mdl: General Purpose ARR-10

$2,900.00

Quantity: 1

Inventory #: 9616

Call 610-286-1655 with questions or shipping quotes.

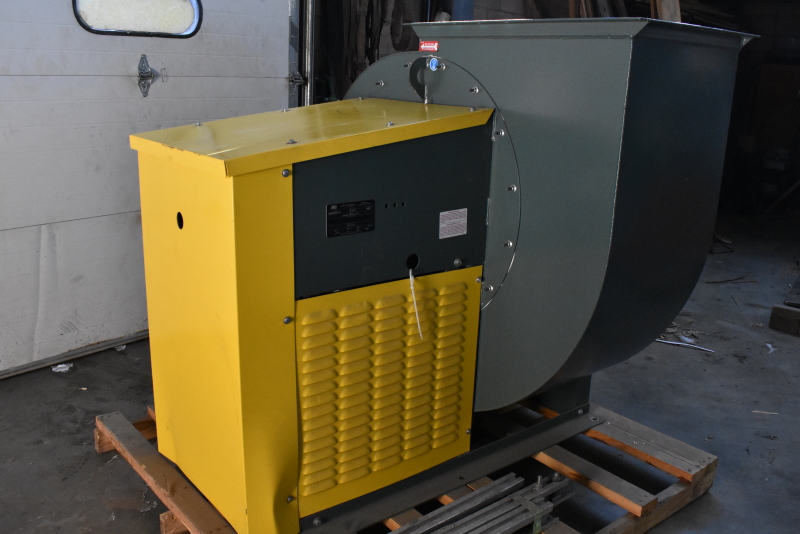

This is an unused New York Blower type 27 ACF centrifugal blower on the original skid. This style blower is a general purpose backward inclined-airfoil design. The 10 arrangement means the motor is located in the pedestal and the blower wheel is belt driven. Unit is unused and in excellent condition.

Centrifugal Ventilator, backward inclined, general purpose

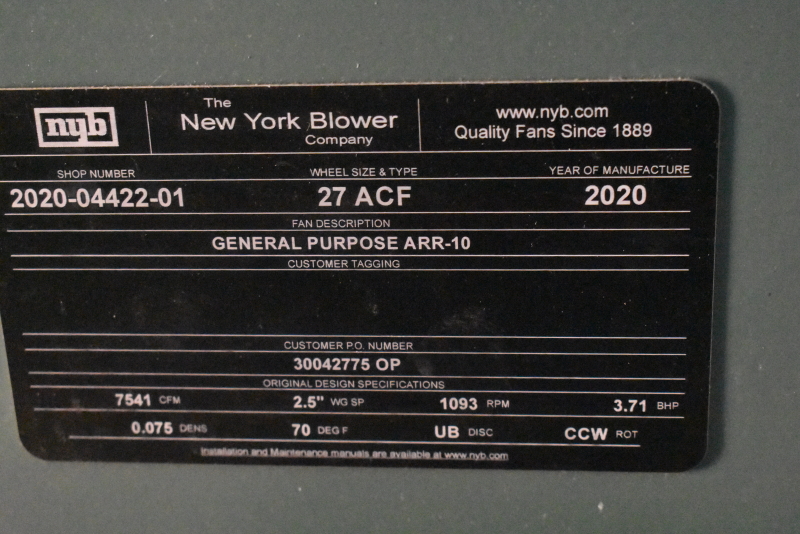

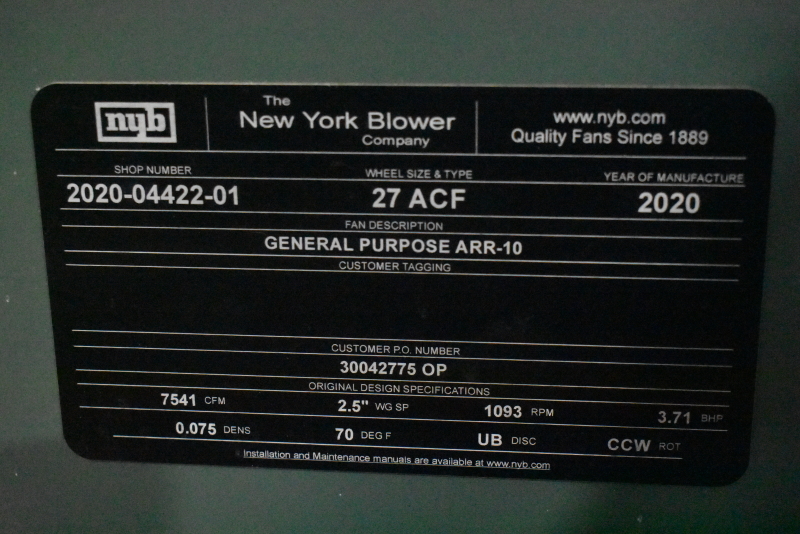

Wheel size & type 27 ACF, (27")

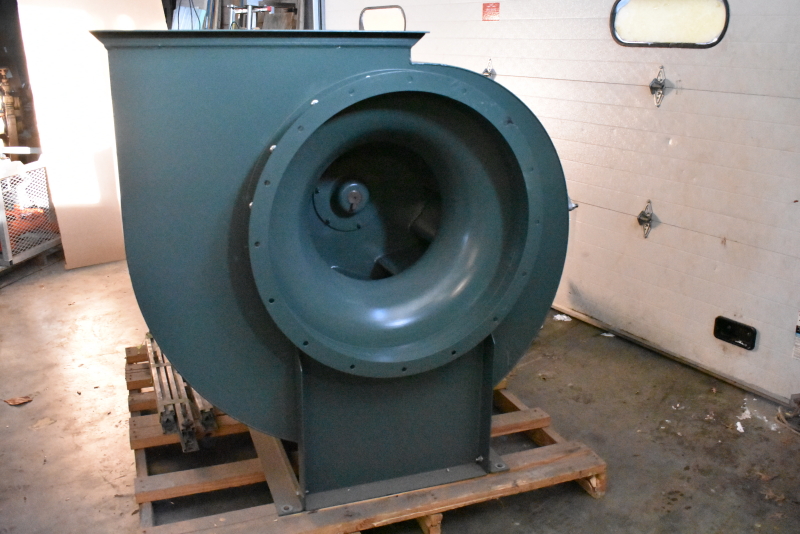

Inlet: 33.5"

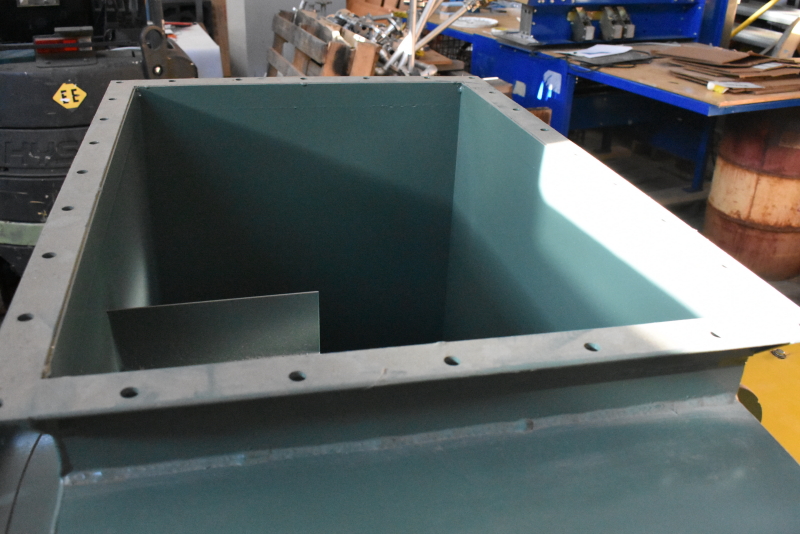

Outlet: 24 x 33"
AAR-10: arrangement 10, motor inside fan pedestal, belt drive

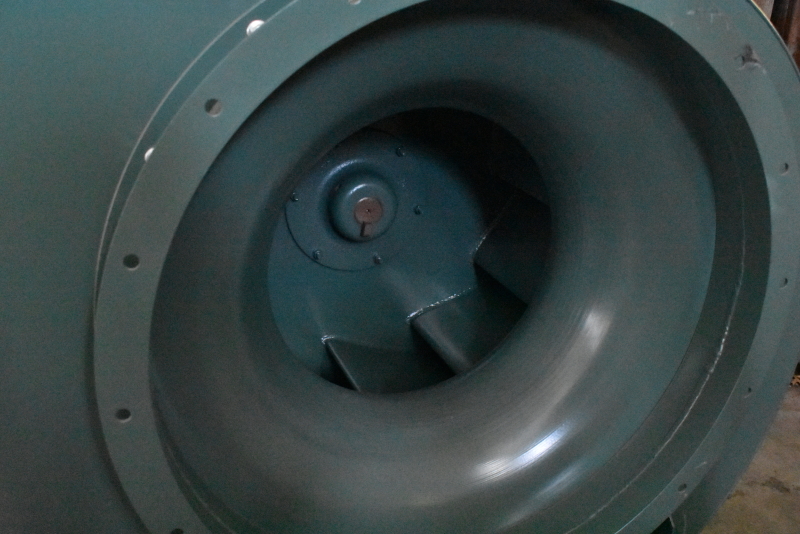

ACF: AcoustaFoil wheel design
7541 CFM
2.5" WG SP,
1093 RPM,
3.71 bhp,
.075 DENS,
70 deg F,
CCW rot
shop # 2020-04422-01
motor: 5 HP, 230/460V
