Condition Desc. used-excellent
Manufacturer Alloy Products Corp
Model 10 gallon polished tank
Serial # 68353-001
Length 29
Width 27
Height 41
Weight 100

This is a truck freight item which will require us to get a shipping quote. You can complete the checkout and provide payment information but you will not be charged until you agree to the freight charges. We will contact you with the freight quote. If you are providing your own shipping contact us.

10 gallon vessel Alloy Products Corp 100 PSI 316 SS Lightnin Magmixer mixer

Mfg: Alloy Products Corp

Mdl: 10 gallon polished tank

$7,500.00

Quantity: 1

Inventory #: 9633

Call 610-286-1655 with questions or shipping quotes.
REQUEST MORE INFO

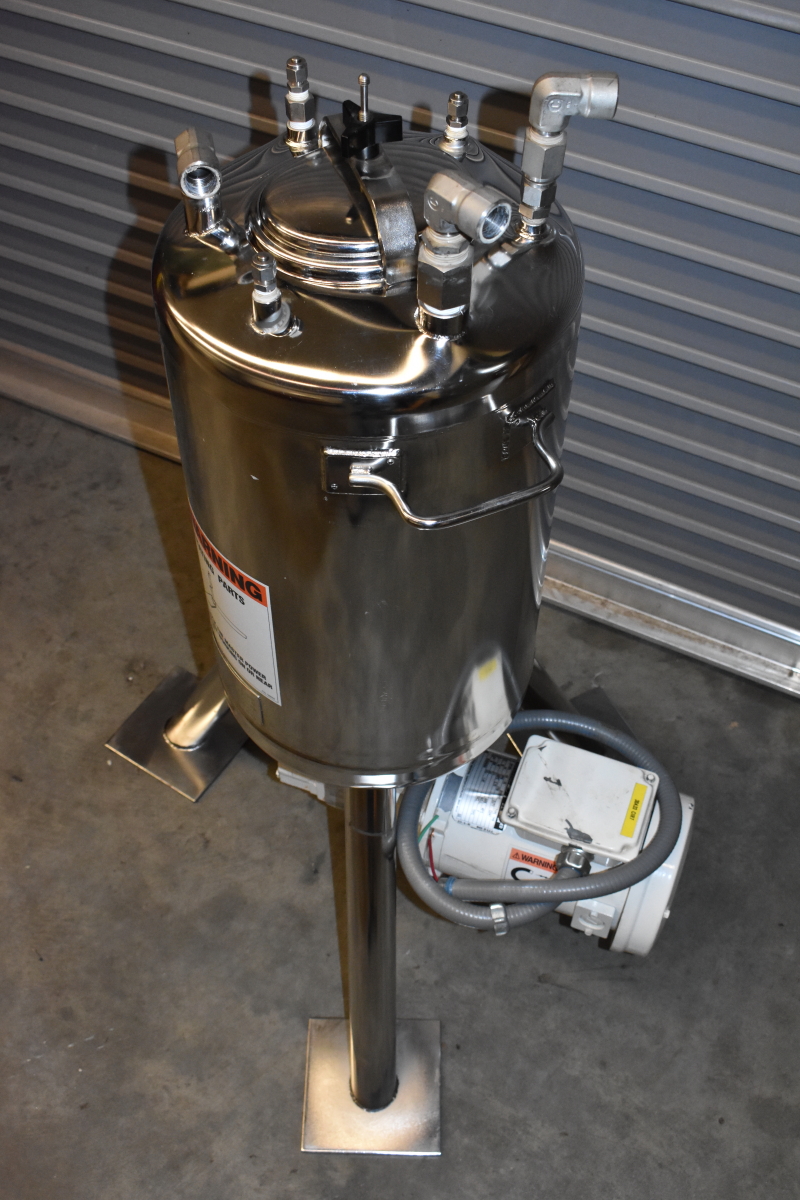

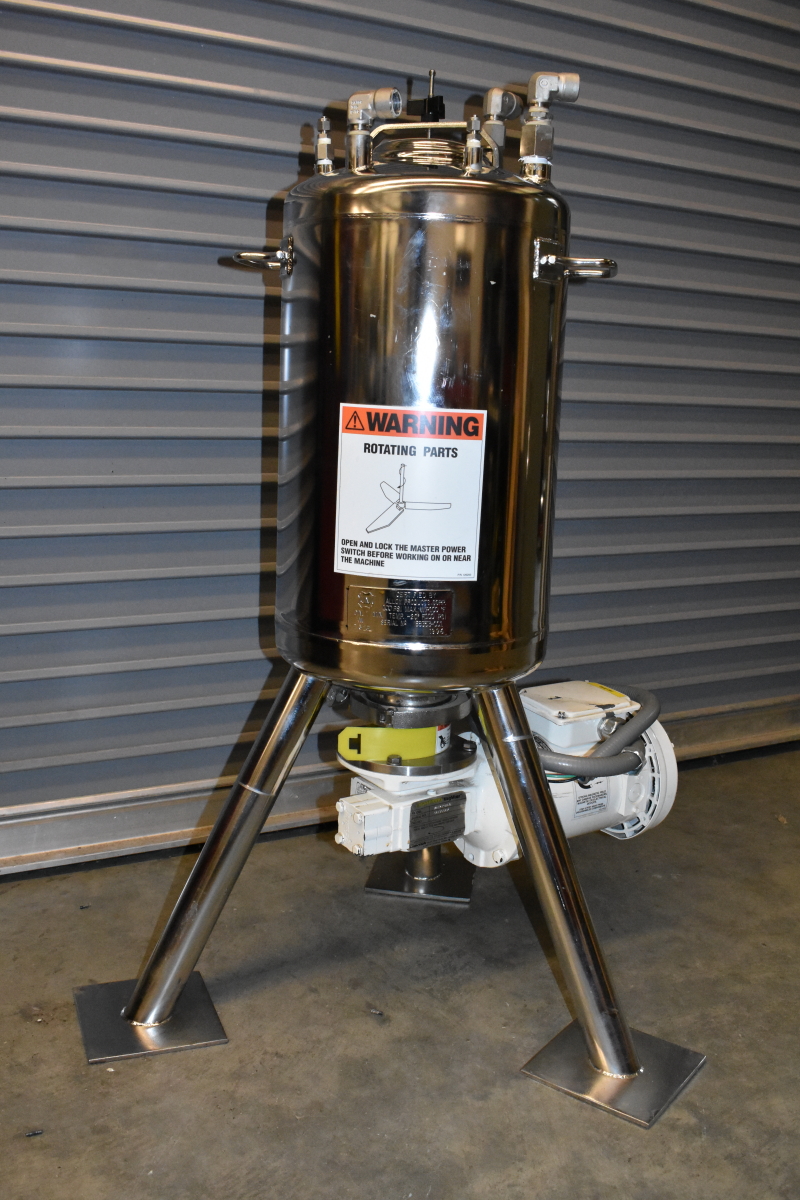

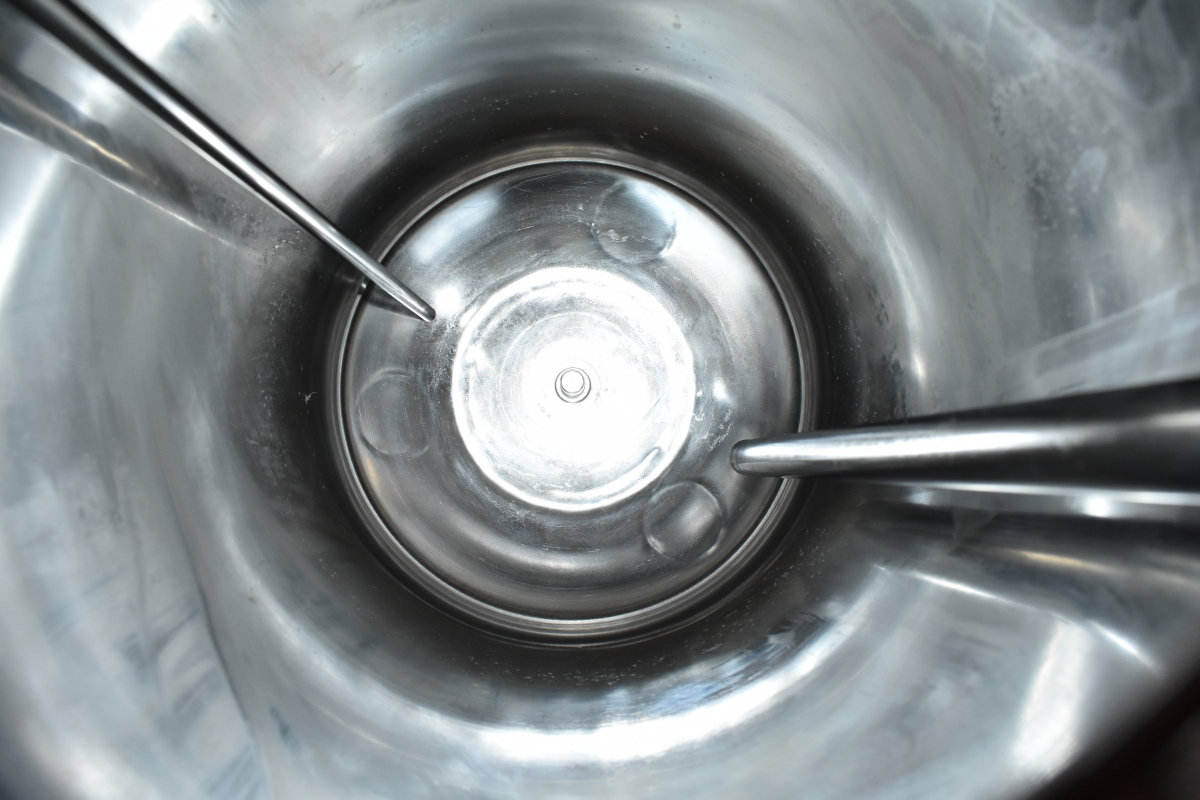

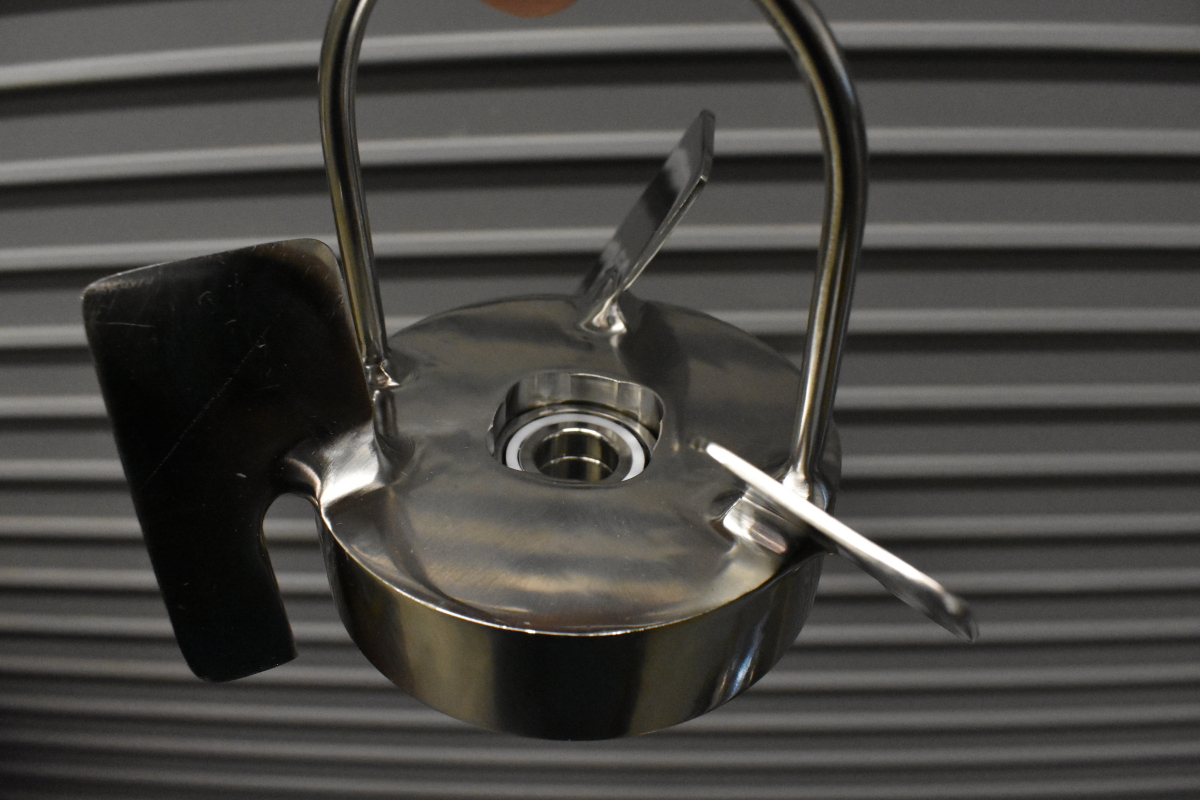

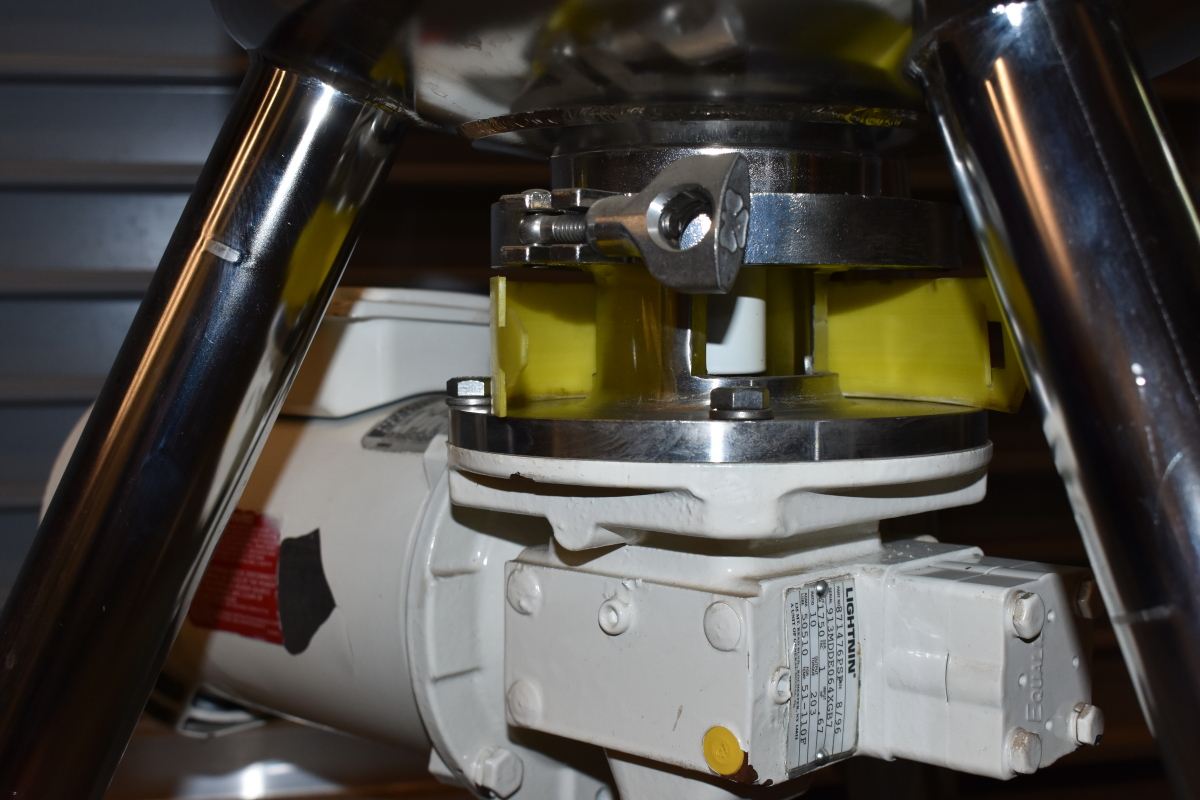

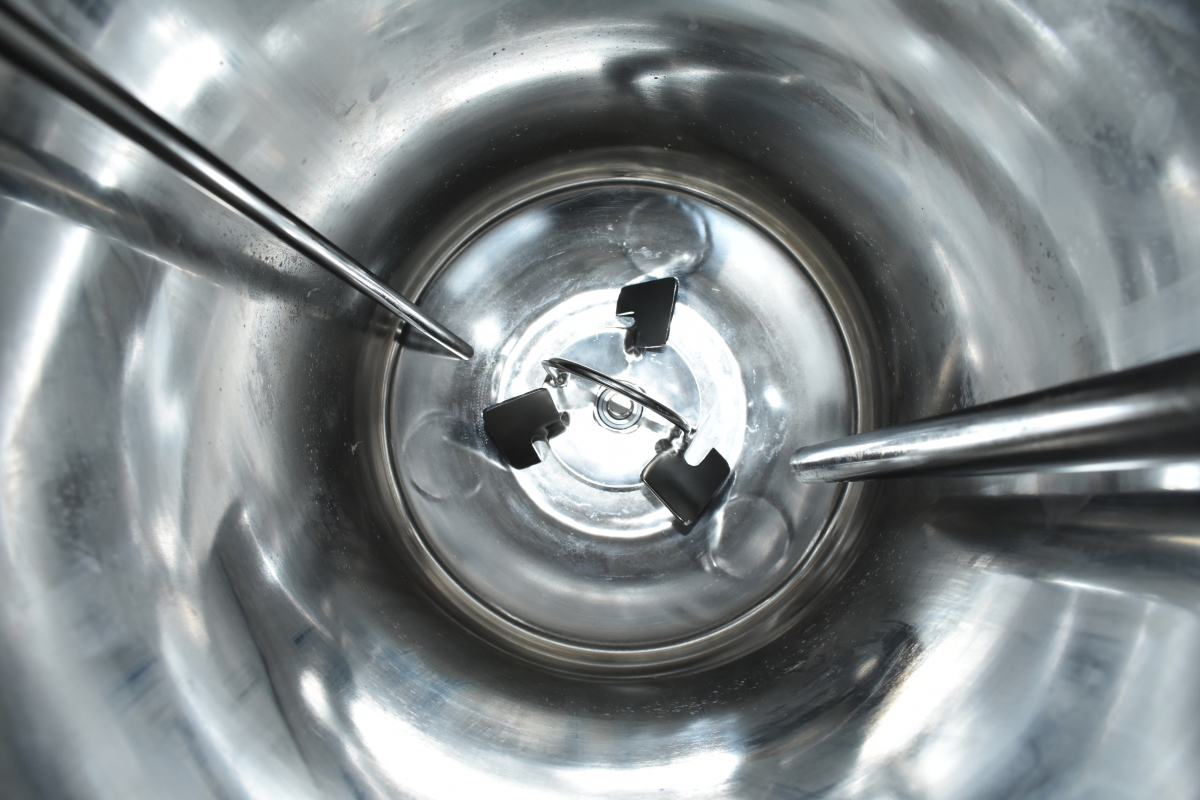

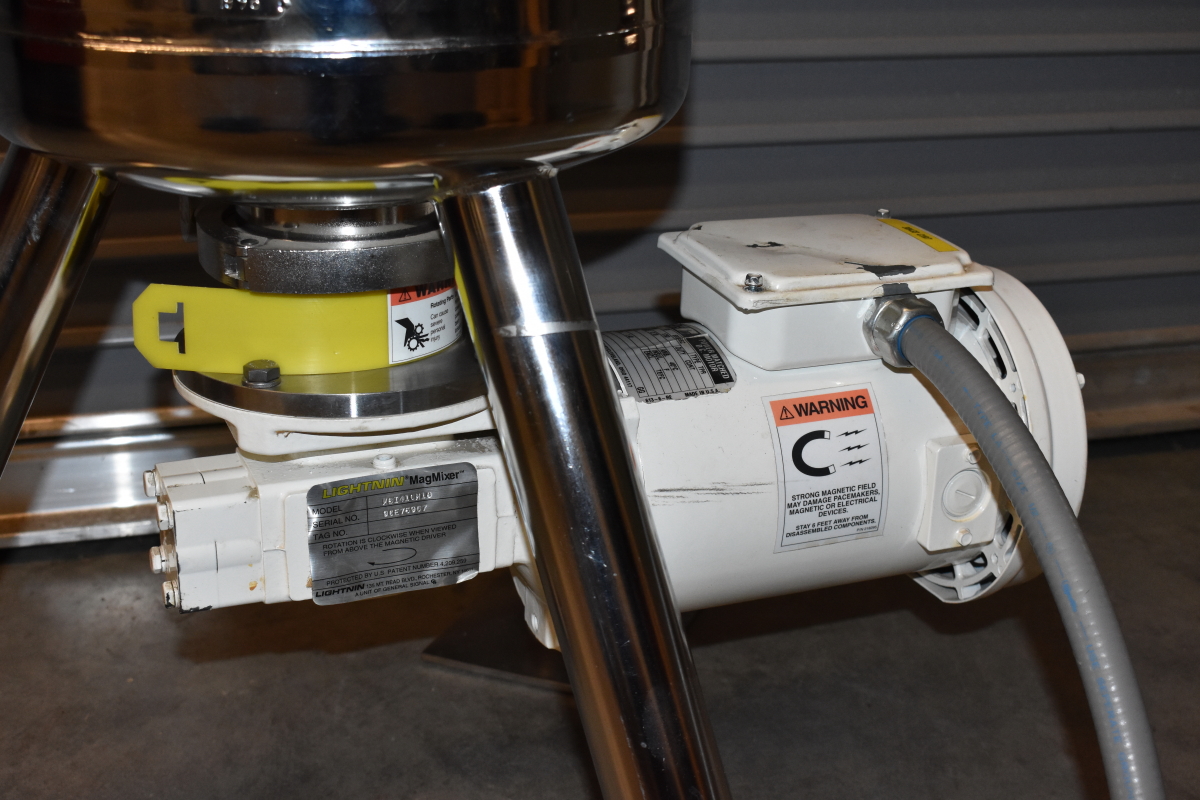

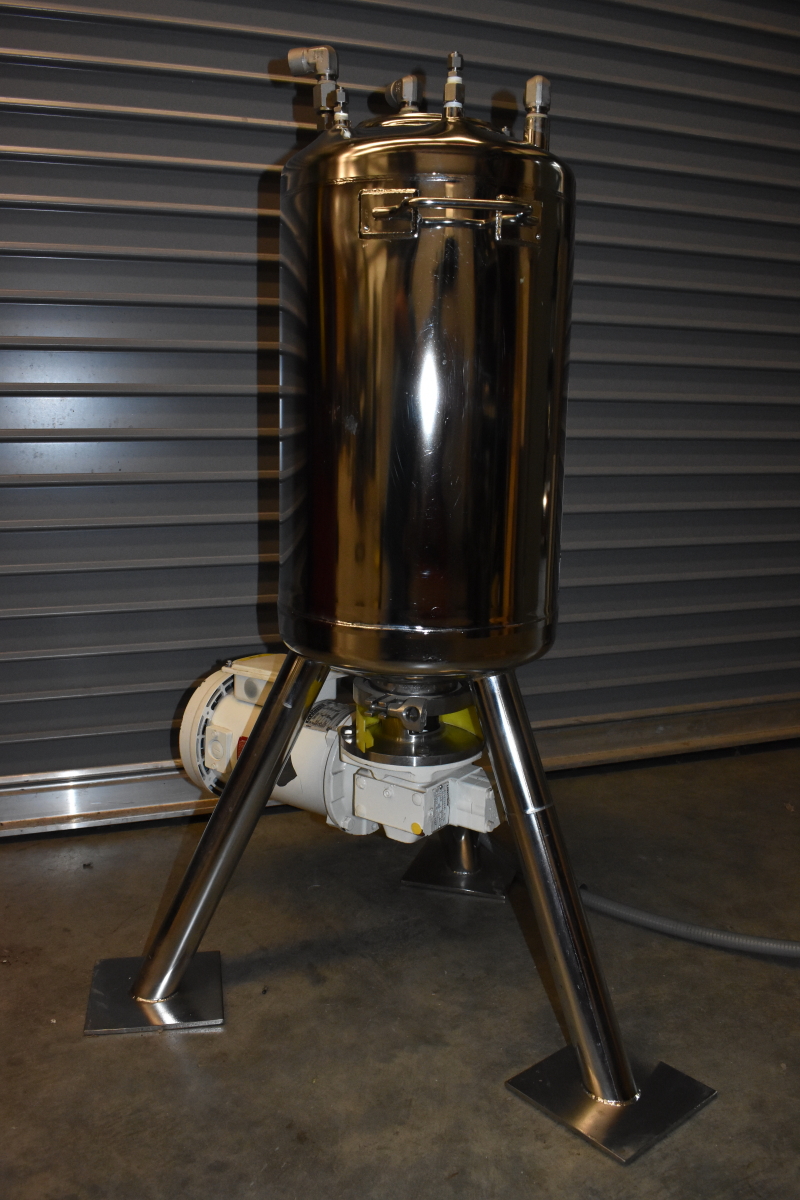

This is a 10 gallon electropolished pressure vessel with a Lightnin magnetic mixer in bottom of tank.  The magnetic mixer has a removable impeller in the tank with no physical shaft coming through the bottom of the tank for a perfect seal.  The gearhead motor under that tank transmits its power to the impeller with magnets.  This unit was removed from a custom made system and has little to no use on it.  We tested the motor with a DC controller and it worked well as can be seen in the test video.   A motor controller is not included but it only needs a very simple 90VDC controller to power the motor and to make the system variable speed.

The tank is manufactured by Alloy Products Corp and it resembles their 10 gallon 316 stainless general purpose electropolished tank.  The magnteic mixer is manufactured by Lightnin and it is their MBI410 Magmixer model that was welded to the bottom of the tank by the Alloy Products Corp.


  • 10 gallon
  • Tank size:  12" x 16.75 shell length (weld to weld)

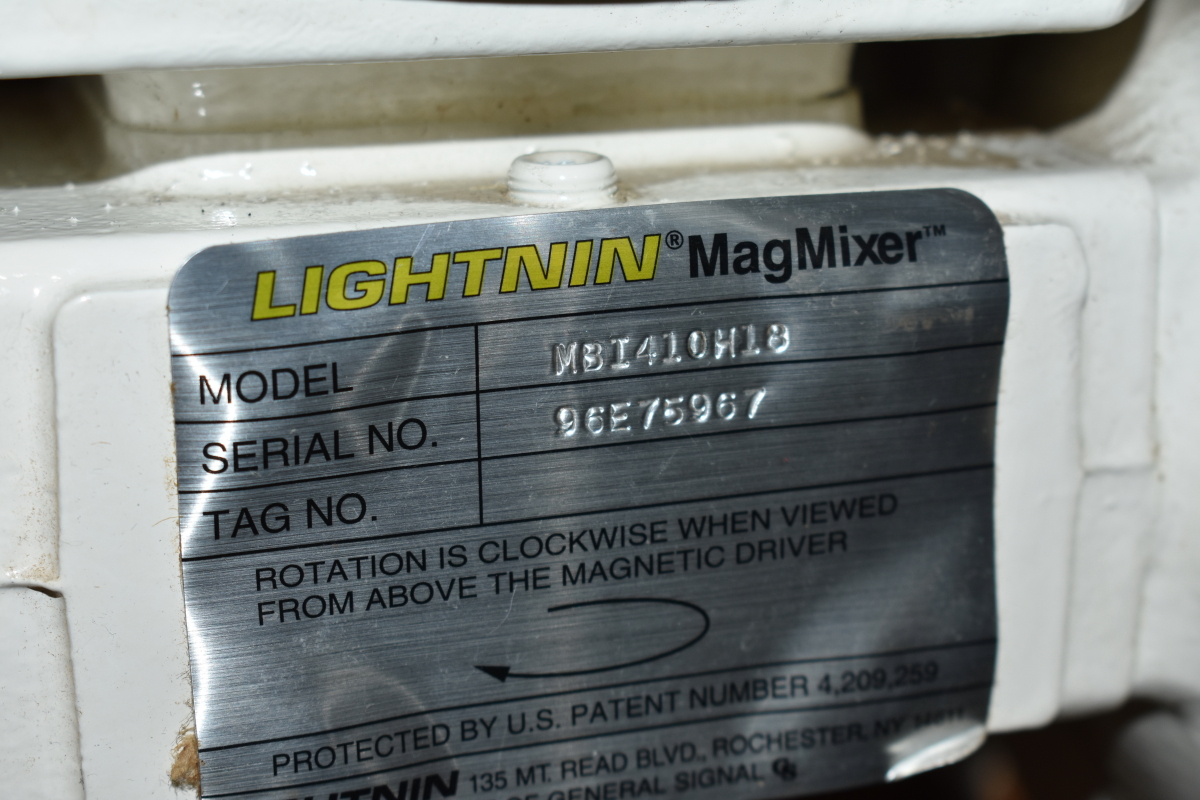

  • Lightnin Magmixer model MBI410H18
  • 1/4 HP
  • 90 VDC (no DC controller included)
  • max working pressure: 100 PSI at 100 Deg F
  • min temp: -20 Deg F
  • 316 SS

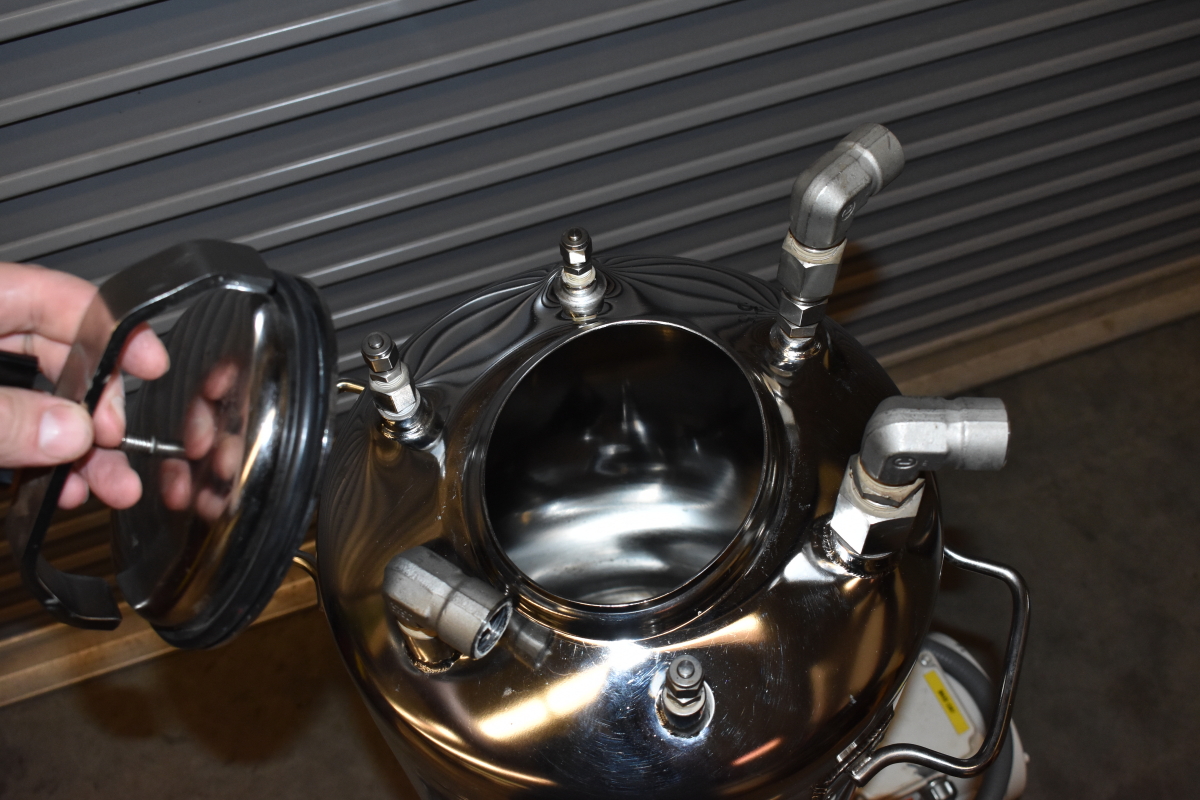

  • Oval opening
  • (5) threaded port on top
  • WILL REQUIRE A DC MOTOR CONTROLLER
